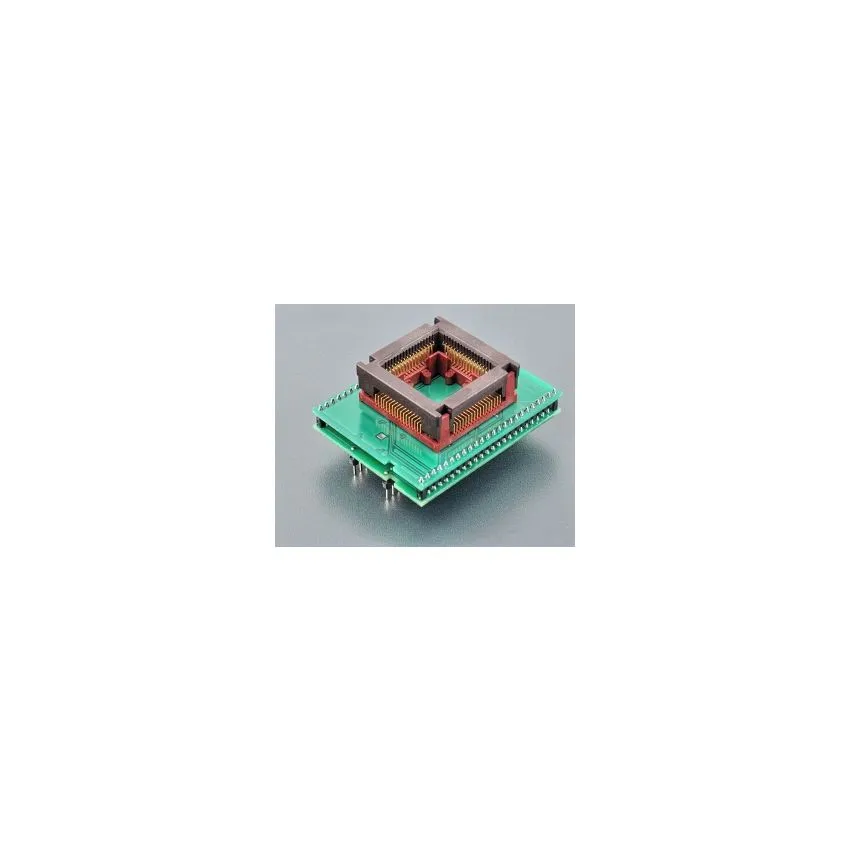

DIL48/PLCC68 ZIF MCS51-1

The special adapter is specifically designed for use with NXP/Philips microcontrollers such as 87C451, 87C453, 87C552, 87C554, 89C739, and other devices in PLCC68 (Plastic Leaded Chip Carrier) package, providing a convenient solution for programming these devices.



The adapter features a ZIF (Zero Insertion Force) socket with an OpenTop type design, allowing for easy insertion and removal of devices for programming. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring its durability and long-lasting performance.



The bottom of the adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically tailored to the pinout arrangement of PLCC68 devices, such as NXP/Philips 87C451, 87C453, 87C552, 87C554, 89C739, and other similar microcontrollers, ensuring a secure and reliable connection during programming.



The adapter is made in Slovakia, known for its quality manufacturing. It is identified by the Ord. no. 70-0069 and is suitable for programming NXP/Philips microcontrollers in PLCC68 package, providing a reliable solution for device programming needs.
