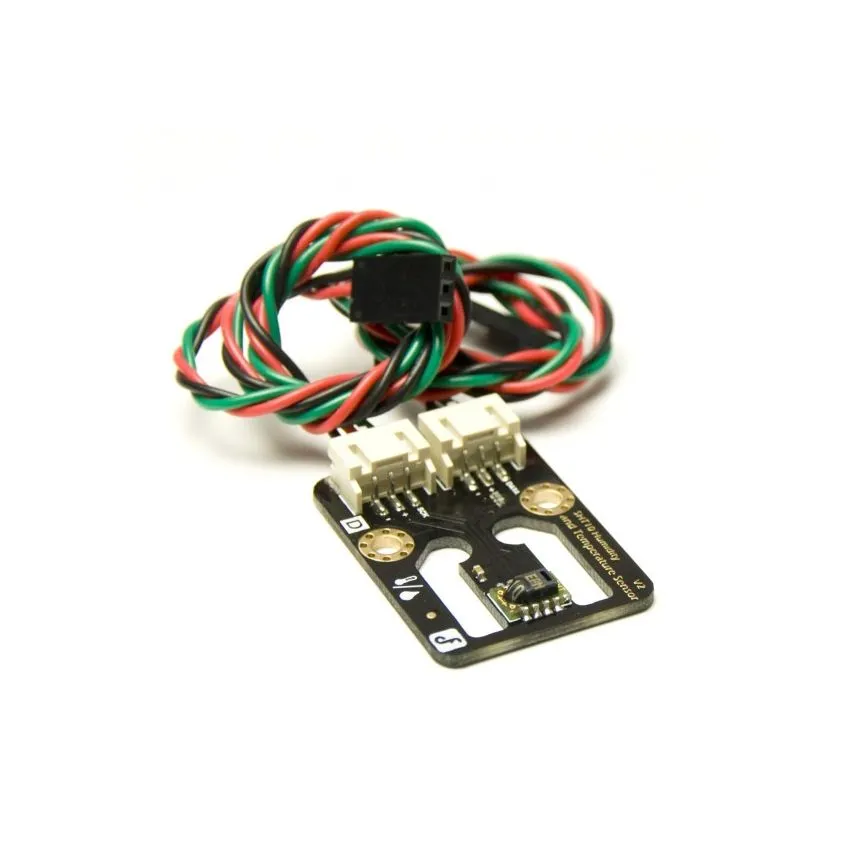

DFR0066 SHT10 DIGITAL TEMP & HUMIDITY SENSOR

SKU
STSx0078
Brand
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

Accuracy, durable, compatibility and easy to use, it has all the attributes of a superior sensor.
This sensor uses SHT1x sensor. SHT1x is individually calibrated in a precision humidity chamber. The calibration coefficients are programmed into an OTP memory on the chip. These coefficients are used to internally calibrate the signals from the sensors. The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration. The tiny size and low power consumption makes SHT1x the ultimate choice for even the most demanding applications.

Improvement List:

Wide voltage range from 3.3V to 5V
Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)
Easily recognitive interfaces of sensors (""A"" for analog and ""D"" for digital)
High quality connector
Immersion gold surface

Specifications:

Chip: SHT10
Interface :Digital
Humidity Ranger:0-100%RH
Tempereature ranger: -40~128.8℃
Humidity accuracy:±4.5%RH
Temperature accuracy:±0.5℃(25℃)
Size: 32x27mm
Weight:5 gram
Voltage:3.3V~5V

More Information
Brand DFRobot
GTIN 1,
Current Consumption N/A
