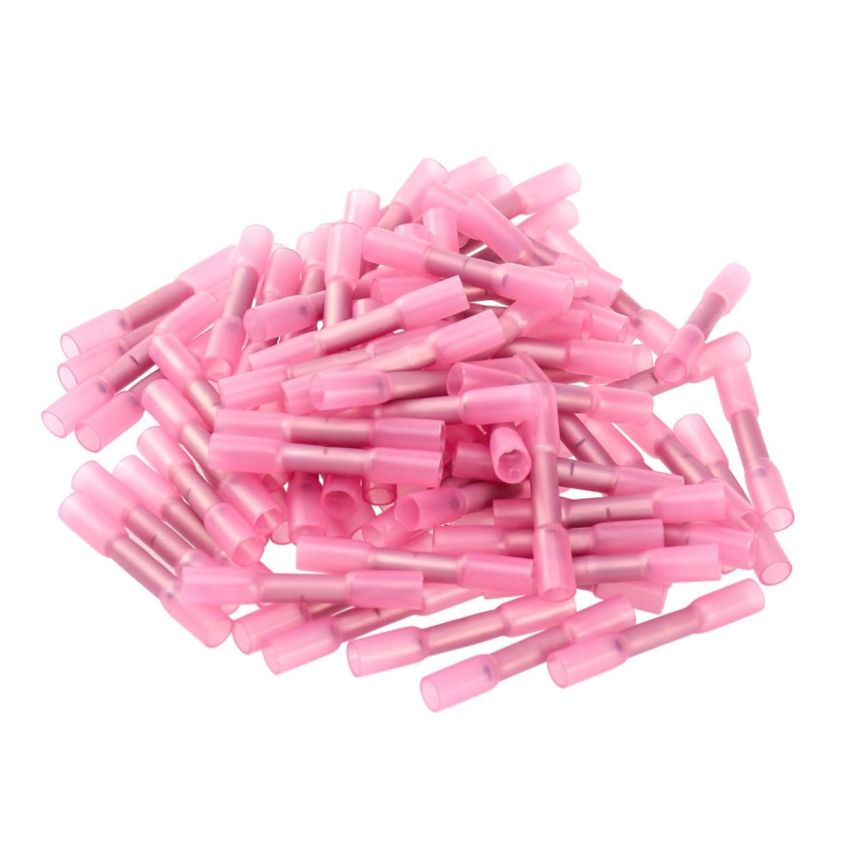

K12 Spade Butt Connector 0.5-1.5mm, Heat Shrink Waterproof, 22-16AWG

The K-12 Spade Butt Connector is designed for secure and waterproof electrical connections in critical environments like automotive, marine, and industrial wiring. Suitable for wire sizes between 0.5mm² and 1.5mm² (22–16AWG), this heat-shrinkable connector features a dual-wall design with an outer polyolefin tube and inner adhesive sealant. When heated, the tube shrinks and the adhesive flows to create a moisture-proof bond around the wire joint.

Key Features:

• Supports 0.5–1.5mm² wire range, compatible with 22–16AWG cables
• Dual-wall heat shrink tubing with adhesive lining ensures waterproof sealing
• Tin-plated copper core provides excellent conductivity and corrosion resistance
• Rated for 600V and operating temperature from -55°C to 125°C
• Ideal for marine, automotive, and industrial wiring applications
• Transparent body for easy wire insertion verification

Additional Specifications:

• Type: Spade Butt Connector
• Gauge : 22–16AWG
• Size: 0.5–1.5mm
