BGA-Bottom-44

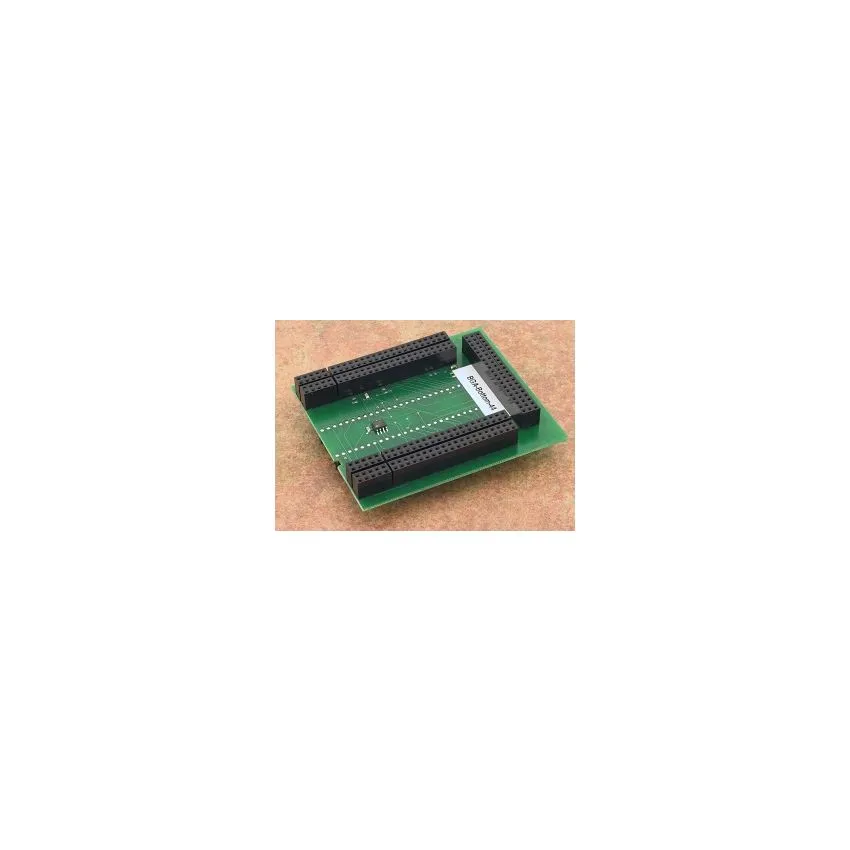

The bottom board of the BGA adapter with Ord. no. 70-0528 is specifically designed for CPLD (Complex Programmable Logic Device) devices, specifically the Xilinx CoolRunner XPLA3 series, which have a matrix size of 16x16. The bottom board is made in Slovakia, adhering to high-quality manufacturing standards to ensure reliable performance.



The bottom board of the BGA adapter is designed for connection to the BGA-Top-X board, which features 8x25 and 3x20 sockets for wire wrap pins. This allows for easy and secure connection between the CPLD device and the BGA adapter, ensuring efficient programming or testing.



The bottom board of the BGA adapter features 2x24 pins with a square shape and a pin pitch of 0.6x0.6mm. The row spacing is 600mil (0.6 inch), which provides a standardized and compatible interface for connecting with the CPLD device.



The Ord. no. 70-0528 serves as a unique identifier for this specific bottom board of the BGA adapter, making it easy to identify and track in a professional environment. It is designed to provide a reliable and efficient connection between the CPLD device and the BGA adapter, enabling smooth programming or testing operations for Xilinx CoolRunner XPLA3 CPLD devices in a 16x16 matrix configuration.
