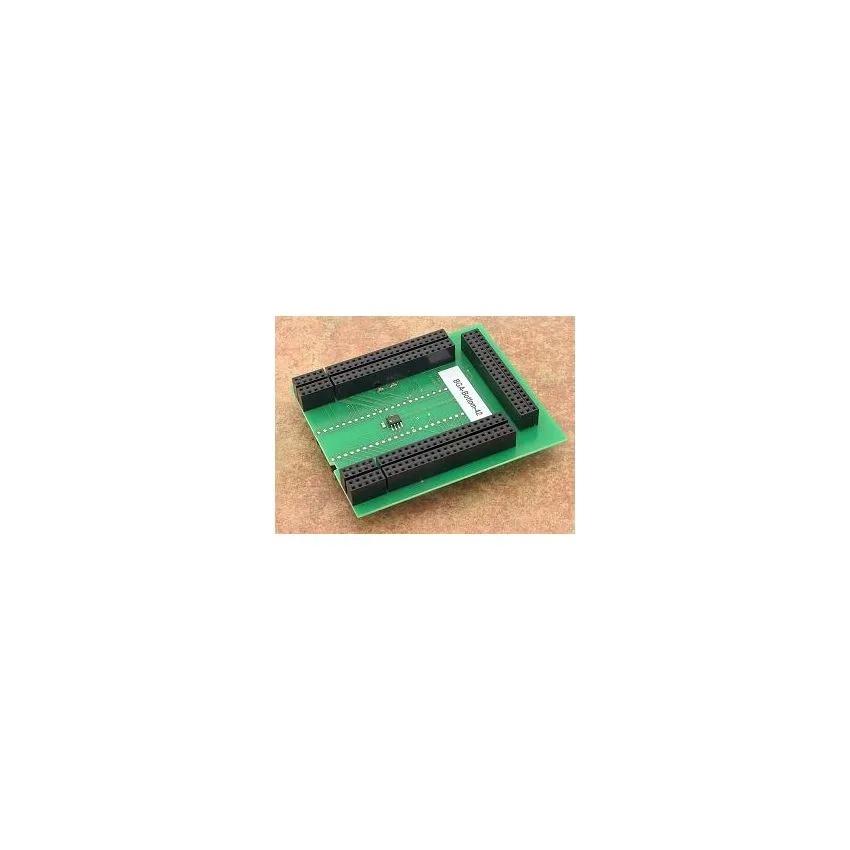

BGA-Bottom-42

The bottom board of the BGA (Ball Grid Array) adapters is specifically designed for CPLD (Complex Programmable Logic Device) devices, specifically Altera MAX II, in a matrix configuration of 11x11. It is manufactured in Slovakia and is identified by the order number 70-0643.



The bottom board is designed for seamless connection to the BGA-Top-X through 8x25 3x20 sockets for wire wrap pins, ensuring reliable and efficient connectivity between the top and bottom boards.



It consists of 2 rows, each with 2x24 pins in a square layout, with a dimension of 0.6x0.6mm. The rows are spaced at 600 mil, providing appropriate spacing for effective interfacing with the BGA-Top-X.
