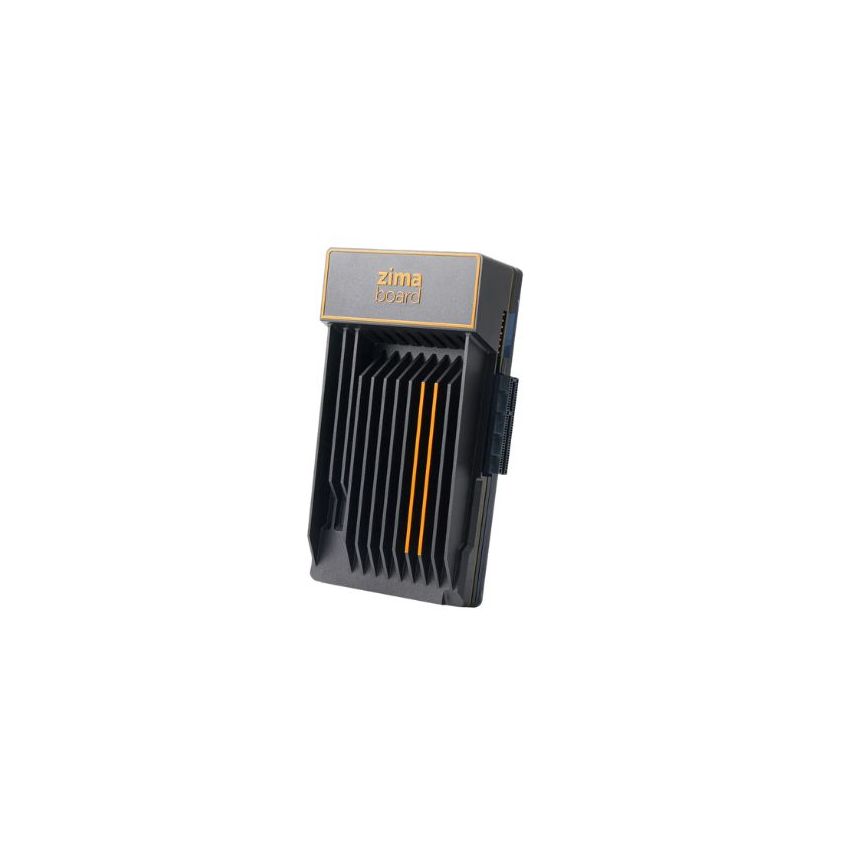

INTRODUCTION ZimaBoard is a low-cost single-board server designed for makers and geeks. Zimaboard has both the expandability of an x86 SBC and the appropriate power of a microserver. With ZimaBoard, you can setup a 4 Terabyte personal cloud in 5 minutes, configure a secure VPN to protect your digital footprint, tune your network with OpenWrt and pfSense, build a 4K media server that runs with Plex, share and collaborate with team members on your files, or upgrade your smart projects across different systems. ZimaBoard is created by makers who got tired of recurring fees, unfriendly presets, and isolated systems. We want to make the home digital experience more attractive and affordable.

SPECIFICATION

Model: ZimaBoard 232/432/832 CPU: Intel Celeron N3350 Dual Core 1.1-2.4GHz (232 Model), or Intel Celeron N3450 Quad Core 1.1-2.2GHz (432 & 832 Model) RAM: 2G/4G/8G LPDDR4 Onboard Storage: 32GB eMMC HDD/SSD: 2x SATA 6.0 Gb/s Ports LAN: 2x GbE LAN Ports USB: 2x USB 3.0 PCle: 1x PCle 2.0 4x Display: 1x Mini-DisplayPort 1.2 4k@60Hz TDP: 6W Dimensions: (W x D x H) 138.7 x 81.4 x 34.9 mm Weight: 278g Other Feature: Passive Cooling Intel VT-d, VT-x, AES-NI Support 4K video transcoding H.264 (AVC), H.265 (HEVC), MPEG-2, VC-1 Pre-installed OS: CasaOS (Based on Debian) Compatible OS: Linux / Windows / OpenWrt / pfSense / Android / Libreelec
