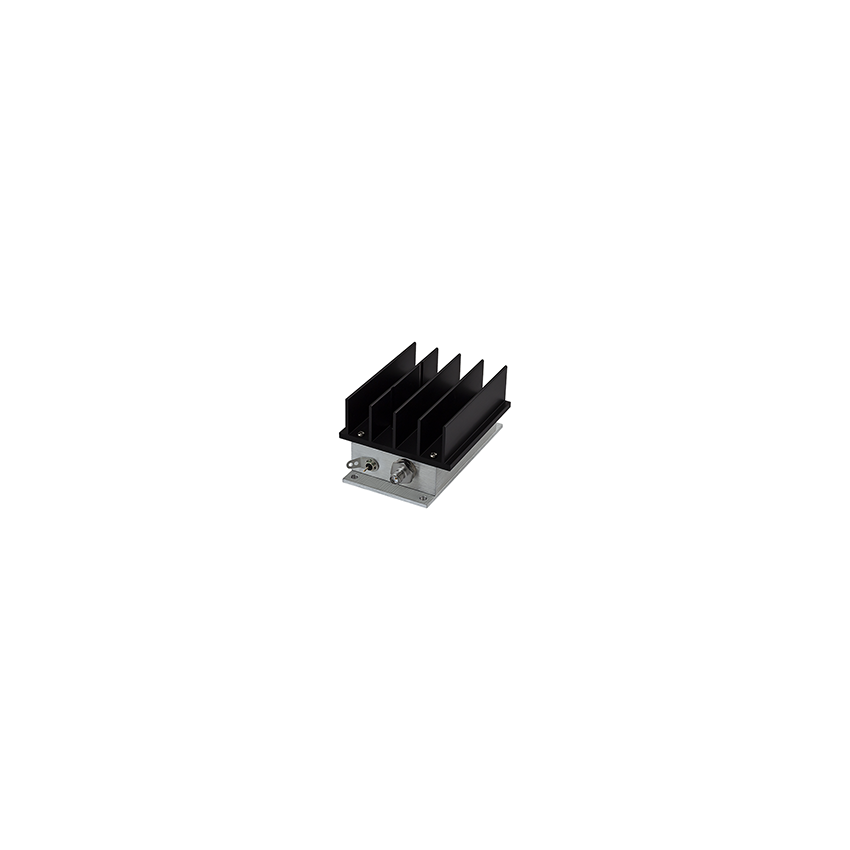

ZHL-6A+ Coaxial Amplifier Wideband 0.0025 to 500 MHz 50 Ohm Medium Power

ZHL-6A+ Coaxial Amplifier Wideband 0.0025 to 500 MHz 50 Ohm Medium Power

SKU
PPPS0332
Part Number
ZHL-6A
Brand:
Mini Circuits
Categories:
Power & Line Protection, Power Supplies
Out of Stock
Be the first to review this product
Out Of Stock
Add to Wish List

Notify me when this product is available:

Add to Compare
Ask for Quotation

Ask for Quotation

Guarantee safe & secure checkout

Frequency : 0.0025 to 500 MHz
Gain : 25 dB
Gain Flatness : ±1.2 dB
Noise Figure : 9.5 dB
Output Power : 22 dBm
Output Power : 0.16 W
P1dB : 22 dBm
P1dB : 0.158 W
IP3 : 34 dBm
IP3 : 2.51 W
Impedance : 50 Ohms
Input VSWR : 1.80:1
Output VSWR : 2.00:1
Supply Voltage : 24 V
Current Consumption : 0.35 mA
Connectors : BNC
RoHS : Yes
