WS-6980 is a DVB-S/S2/T/T2/C and MPEG-2/4 H.264/h.265 (Just support 8 Bit, not suppport 10 Bit) compliant handheld combo meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling unit. Currently, WS-6980 can only support 1080P and cannot support 4K.

Features:

• 7 Inch High Definition TFT LCD Screen(1024*600)
• Fully DVB-S/S2,T/T2/C, MPEG-2/MPEG-4 compliant
• MPEG-2/MPEG-4 H.264 Hardware decoding
• Supports scan of Auto,Manual,NIT(DVB-S/S2)
• Supports scan of blind (DVB-S/S2/C)
• Supports Constellation analyzer
• Supports Spectrum analyzer
• Supports for multiple CH/TP detection
• Supports Alarm for Locking Signal
• Auto Calculate Angle of AZ,EL
• Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
• Stereo pairs of speakers
• Supports both AV IN/OUT
• Supports HDMI IN/OUT out and AV in
• Supports the DC12V output
• Electronic compass
• LNB,ANT,DC12V short protect
• The built-in flashlight
• Optical power detection
• 7.4V/5000mAh Li-ion Battery
• Independent battery charging power
• Software upgrade via USB port

Specification:

• Transmission Standards:DVB-S2/S,DVB-T/T2,DVB-C,MPEG-2,MPEG-4,H.264/H.265(8 Bit, not support 10 Bit)
• Satellite Input/Demodulation
• Connector Type:F Type
• Input Frequency:950 to 2150 MHz
• Signal Input Level:-65 to-25 dBm
• Band Switch Control:22KHz
• LNB Supply:13V/18V, Imax 400mA
• Demodulation Type:QPSK,8PSK,16APSK
• Symbol Rate:2
• DVB-T/T2/C Input/Demodulation
• Connector Type:Female Type
• Input Frequency:48 to 862 MHz
• Signal Input Level:-79.5dBm (MAX)
• ANT Supply: 5V,12V/24V Imax 100mA
• Demodulation Type: OPSK,16PAM,64QAM,256QAM
• Size(WxDxH): 250mmx156mmx40mm
• Net Weight:1Kg

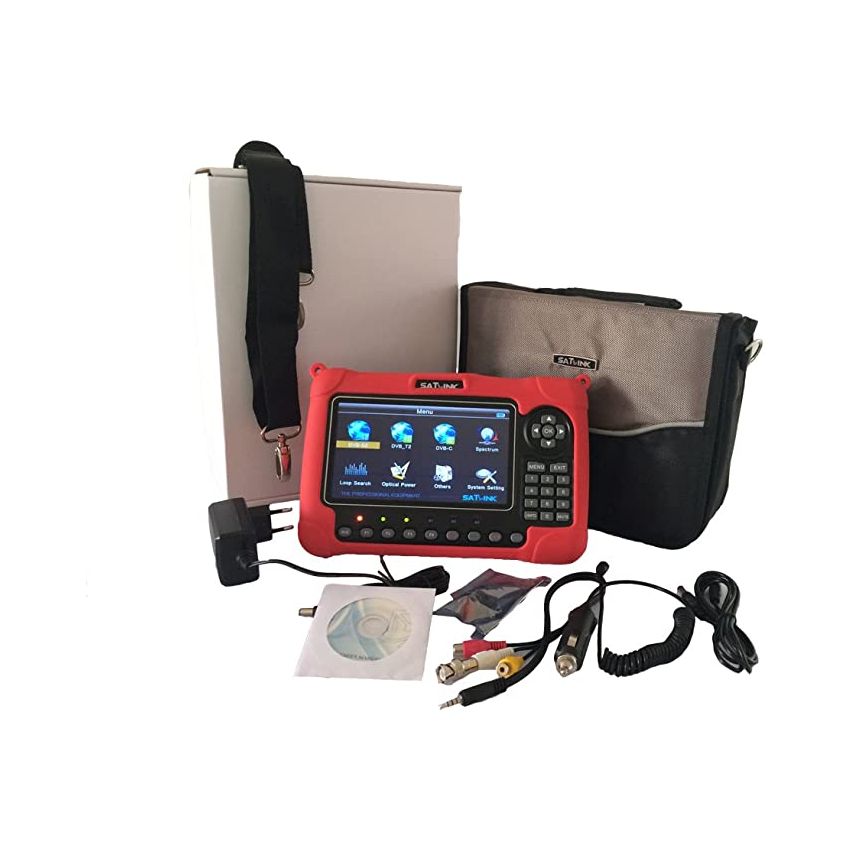

Package List:

1xWS-6980 DVB-S2/C/T2 Combo HD Satellite Finder Meter
1x12V Car charger cable
1x12V Power Charger
1xCarrying case
1xNeck Strap
1xAV cable
1xUser Manual (CD)
