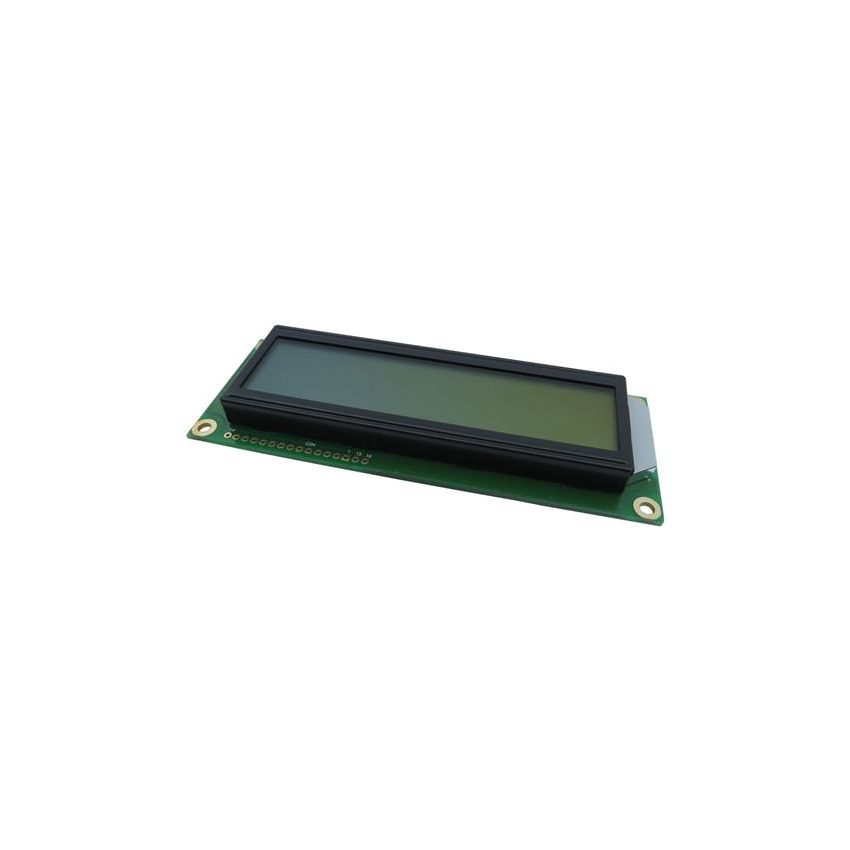

It is a 16x2 Character Dot Matrix LCD Module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel. The WH1602L1 model is negative voltage optioN/Al as well. This display is also available in SPI and I2C interface by using RW1063 controller IC. WH1602L1 is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white LED. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

Specifications:

Brand: Winstar
Size: 3.8"
Resolution: 16x2
Active Area (mm): 94.84x20.00
Dot Size: 0.92x1.10
B/L color, LCD type: B/L white, STN gray pos
Power supply: 5V
Display Interface: 6800
Display IC: ST7066
Constructive Structure: COB
View Angle: 6H
Operating Temperature (°C): -20~70
Display Connection:Soldering PAD
Pin Nr.: 16
Pin Pitch: 2.54mm
