Description :

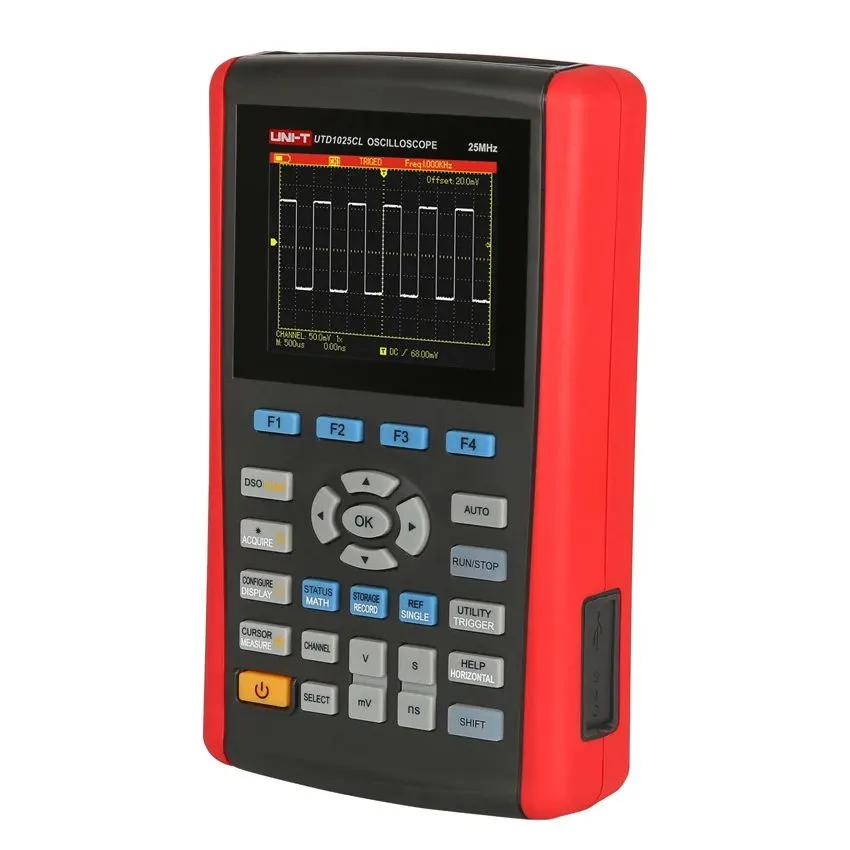

HANDHELD DIGITAL OSCILLOSCOPE 1 channel 25MHz

Specifications:

• Band : 25MHz
• Kind of display used : LCD, TFT 3,5" (320x240)
• Number of channels : 1
• Measurement : AC current, AC voltage, capacitance, continuity, DC current, DC voltage, resistance
• Sampling : 250Msps
• Memory record length : 12kpts
• Time base : 10n...50s/div
• Max. input voltage : 400V
• Trigger : falling-edge, impulse width, rising-edge, video signal
• Test : diodes
• Rise time : 14ns
• Input sensitivity : 5mV/div...20V/div
• Interface : USB mini
• Dimensions : 199x118x49mm
• Weight : 900g
