Description :

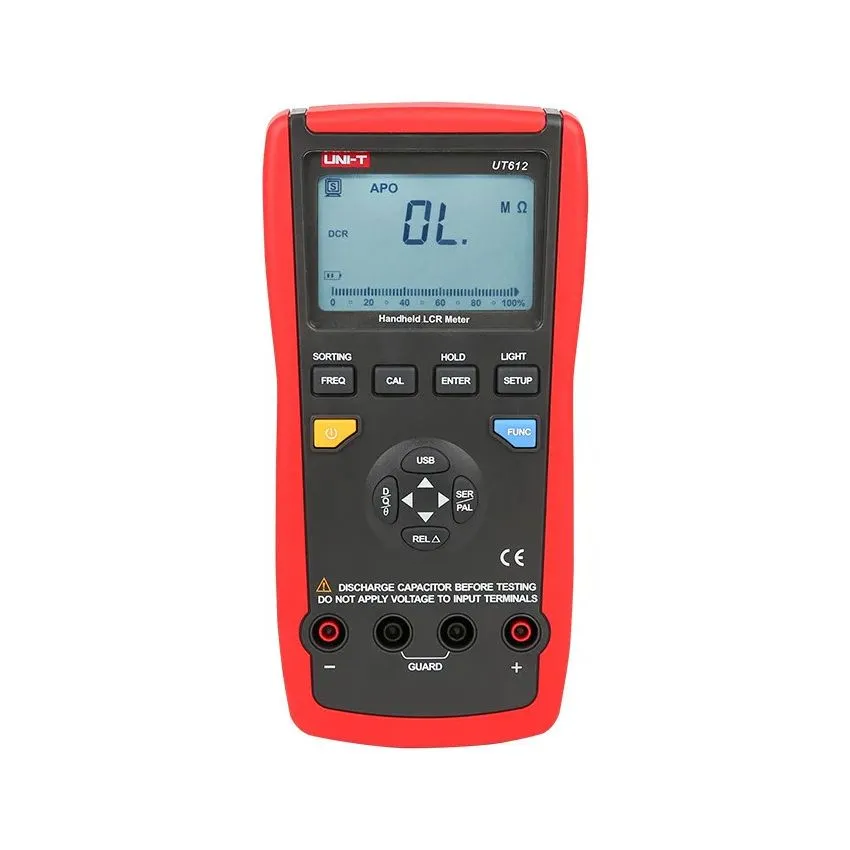

UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance.

Features:

• Certifications: CE, UKCA
• Auto power off
• Data hold
• Relative mode
• USB interface
• LCD backlight
• Deviation ratio measurement
• Comparison function
• Calibration funtion
• Output impedance: 120Ω
• Auto LCR check and measurement
• Low battery indication: ≤6.8V

Specifications:

• Inductance (H) 20uH~2000H ±(0.5% 5)
• Capacitance (F) 200pF~20mF ±(0.5% 5)
• Resistance (Ω) 20Ω~200MΩ ±(0.3% 5)
• Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz √
• Operating voltage 0.6Vrms √
• Test parameters L/C/R/DCR/Q/D/θ/ESR √
• Power 9V battery (6F22) or USB
• Display 40mm x 63mm
• Product color Red and grey
• Product net weight 374g
• Product size 96mm x 193mm x 47mm
• Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
• Standard individual packing Gift box, English manual
