Teensy USB Board, Version 4.1, With Ethernet and pre Soldered Pin

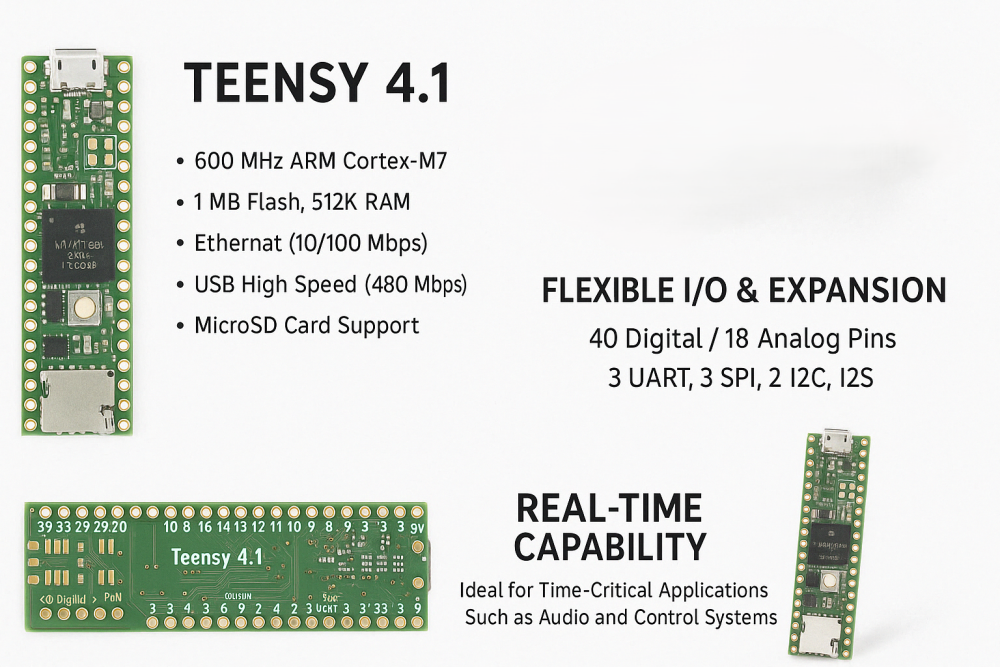

<h1><strong>Description: </strong></h1> &nbsp; The Teensy 4.1 is a small form factor, breadboard-friendly development board with a high-performance microcontroller. It features the NXP i.MXRT1170 chip, which includes an ARM Cortex-M7 processor running at 600 MHz and a large array of peripherals, making it a powerful and versatile development platform. The Teensy 4.1 is compatible with most pin functions of the Teensy 3.2, and offers even faster performance and more memory than previous Teensy models. <h1><strong>Features</strong>:</h1> <ul> <li>Ethernet: 10 / 100 Mbit DP83825 PHY (6 pins)</li> <li>USB Host: 5 Pins with power management</li> <li>SDIO (4 bit data): Micro SD Socket</li> <li>PWM Pins: 35</li> <li>Analog Inputs: 18</li> <li>Serial Ports: 8</li> <li>Flash Memory: 8 Mbyte</li> <li>QSPI Memory: 2 chips Program Memory</li> <li>Breadboard I/O: 42</li> <li>Bottom SMT Pads: 7</li> <li>SD Card Signals: 6</li> <li>Total I/O Pins: 55</li> </ul> &nbsp; <h1><strong>Specifications</strong>:</h1> <ul> <li>ARM Cortex-M7 at 600 MHz</li> <li>Float point math unit, 64 &amp; 32 bits</li> <li>7936K Flash, 1024K RAM (512K tightly coupled), 4K EEPROM (emulated)</li> <li>QSPI memory expansion, locations for 2 extra RAM or Flash chips</li> <li>USB device 480 Mbit/sec &amp; USB host 480 Mbit/sec</li> <li>55 digital input/output pins, 35 PWM output pins</li> <li>18 analog input pins</li> <li>8 serial, 3 SPI, 3 I2C ports</li> <li>2 I2S/TDM and 1 S/PDIF digital audio port</li> <li>3 CAN Bus (1 with CAN FD)</li> <li>1 SDIO (4-bit) native SD Card port</li> <li>Ethernet 10/100 Mbit with DP83825 PHY</li> <li>32 general-purpose DMA channels</li> <li>Cryptographic Acceleration &amp; Random Number Generator</li> <li>RTC for date/time</li> <li>Programmable FlexIO</li> <li>Pixel Processing Pipeline</li> <li>Peripheral cross triggering</li> <li>Power On/Off management</li> </ul>
