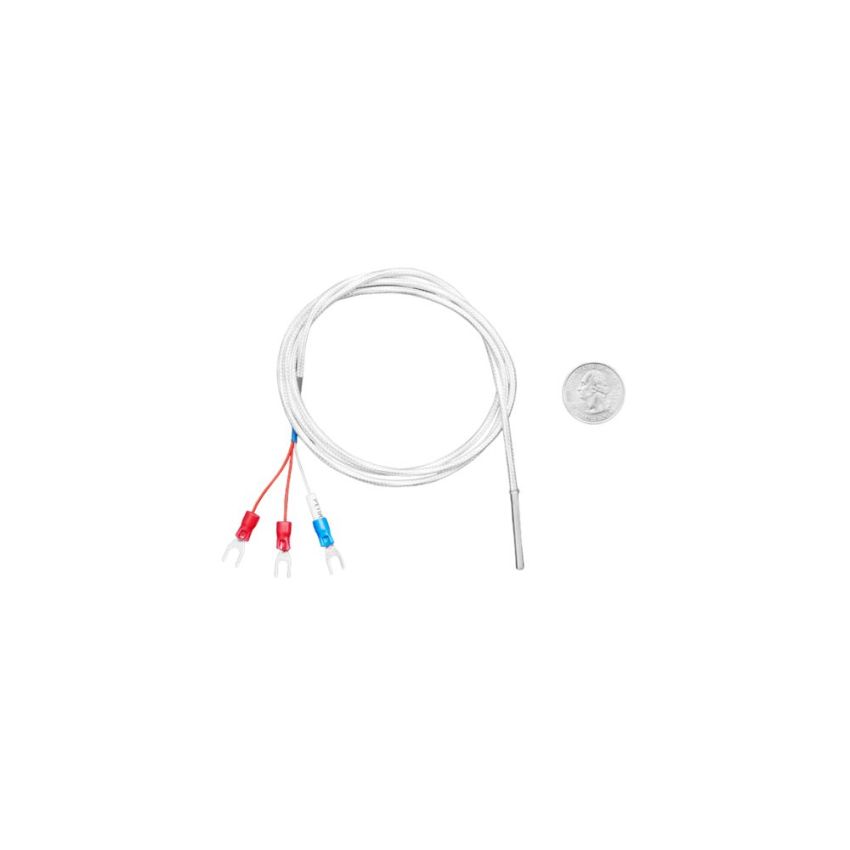

ADA3984, Platinum RTD Sensor, PT1000, 3 Wire,1 meter long

The ADA3984 is a high-precision Platinum RTD (Resistance Temperature Detector) sensor with a PT1000 element, designed for accurate temperature measurement in laboratory and industrial applications. Encased in a durable 316L stainless steel shield, this sensor offers exceptional accuracy, repeatability, and stability, even in high-temperature environments up to 550°C.

Key Features:

• High Precision Measurement: Based on resistance principles, with 1000Ω resistance at 0°C and a nominal variation of 3.85Ω/°C.
• Stable and Reliable: Platinum RTD provides superior accuracy and stability compared to thermocouples or thermistors.
• High-Temperature Resistance: Stainless steel shield ensures durability and reliable operation up to 550°C.
• Three-Wire Configuration: Each sensor comes with three wires: Two of the wires connect to either side of the platinum resistor like you'd expect. The third wire is also connected to one end of the PT1000.
• Positive Temperature Coefficient: Resistance increases with rising temperature, ensuring accurate and consistent readings.
• Durable Build: Encased in a 316L stainless steel shield for rugged industrial and laboratory environments.
