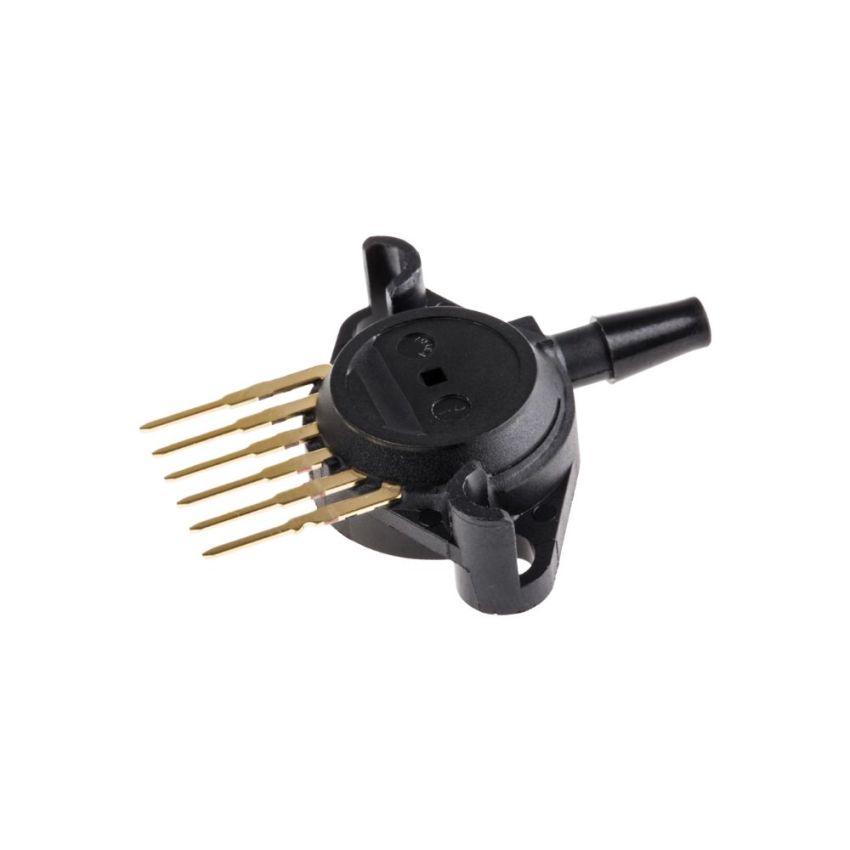

MPX5010GP, Pressure Sensor, 0bar Min, 10kPa Max, Analogue Output, Relative Reading

The MPX5010GP is a high-performance, integrated silicon pressure sensor offering an analog output proportional to the applied pressure. It features on-chip signal conditioning, temperature compensation, and calibration, making it ideal for applications requiring precise and reliable pressure measurements.

Key Features:

• Accurate Pressure Measurement: Provides analog output proportional to pressure with a maximum error of ±5%.
• Microcontroller-Friendly: Designed for microprocessor and microcontroller-based systems with A/D input compatibility.
• Wide Output Range: Delivers a voltage output from 0.2V to 4.7V.
• Stable Power Supply: Operates with a supply voltage range of 4.75V to 5.25V.
• Durable Build: Features a rugged epoxy unibody and thermoplastic (PPS) surface mount package for industrial use.
• Temperature Compensation: Operates reliably across a wide temperature range from -40°C to +125°C.
• Patented Design: Utilizes a patented silicon shear stress strain gauge for enhanced precision.
• Mounting Type: Through-hole configuration for secure and stable mounting.
• Flexible Configurations: Available in differential and gauge pressure versions, supporting both SMT and through-hole (DIP) packages.

Applications:

• Hospital Beds
• HVAC Systems
• Respiratory Systems
• Process Control
• Washing Machine Water Level Measurement
• Appliance Liquid Level and Pressure Monitoring
