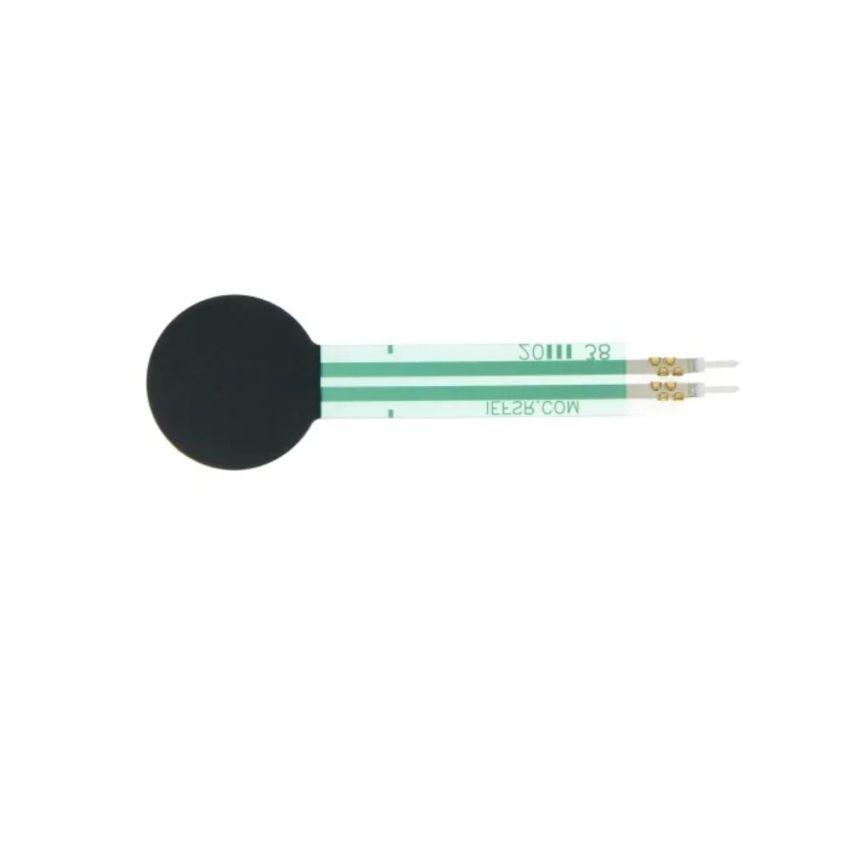

FSR402, Round Force Sensing Resistor, 0-5V DC
AEDÂ 45.00
Guarantee safe & secure checkout
# FSR402 Force Sensitive Module
The FSR402 is a force sensitive module. At the end of the sensor, there is a round force sensitive resistor, the resistance of which depends on the pressure applied to this resistor. This force sensitivity is optimized for use in human-machine interface devices including automotive electronics, medical systems, industrial controls, and robotics.
Key Features:
- Force Sensitivity Range: 0.2N--20N.
- Force Resolution: Continuous (analog).
- Size L: 75mm W: 20mm H: 11mm.
- Weight: 2.5g
- Analog output
- Reliable mechanical structure
- Tested to 10 Million actuations, 1kg, 4Hz / -10 percent average resistance change
| Operating Voltage | 0-5V DC |
|---|---|
| Sensor Type | Force Sensor |
| Current Consumption | N/A |
| Communication Interface | Analog interface |
