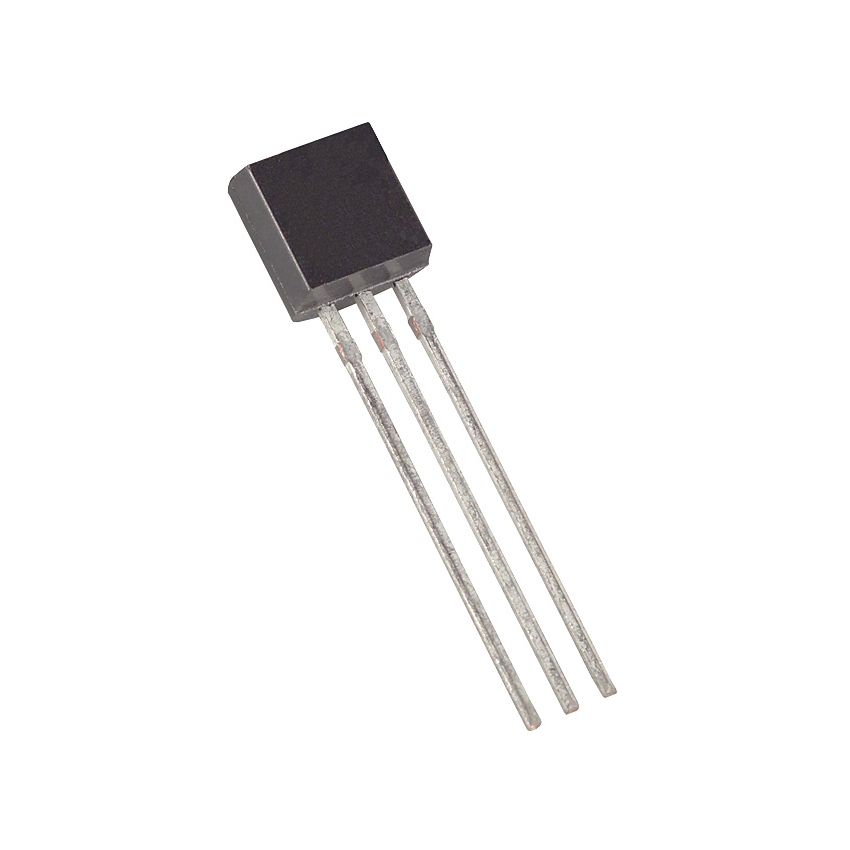

DN6838 ,Hall Effect Sensor IC, Bipolar Switch, 12V, 300 Gauss Sensitivity

The DN6838 is a high-performance bipolar Hall effect sensor IC, designed for detecting changes in magnetic flux density. It operates with a small permanent magnet and provides switching by detecting increases or decreases in magnetic field strength. This IC is ideal for use in applications that require precise magnetic field detection such as speed sensors, position detectors, and micro-switches.

The DN6838 is housed in a compact 3-lead plastic SIL package, making it easy to integrate into a variety of industrial, automotive, and consumer electronic applications. It offers a wide operating temperature range (-40C to +100C) and works reliably in environments with fluctuating magnetic fields. Its compatibility with digital logic circuits (DTL, TTL, and MOS IC) ensures flexibility in design, and its low power consumption makes it suitable for battery-powered devices.

Key Features :

• Wide Operating Voltage: 12V typical operation ensures compatibility with standard industrial power supplies.
• Magnetic Sensitivity: Detects magnetic fields with a strength of 300 Gauss or greater, enabling accurate switching operations.
• Low Power Consumption: Operates with a typical current of 5.5mA, which helps extend the life of battery-operated devices.
• Broad Temperature Range: Works effectively in environments from -40C to +100C, making it suitable for demanding industrial and automotive applications.
• Compact Package: Housed in a small, 3-lead Plastic SIL package for easy integration into designs with space constraints.
• Versatile Digital Output: Compatible with DTL, TTL, and MOS logic families, providing flexibility in circuit design.
