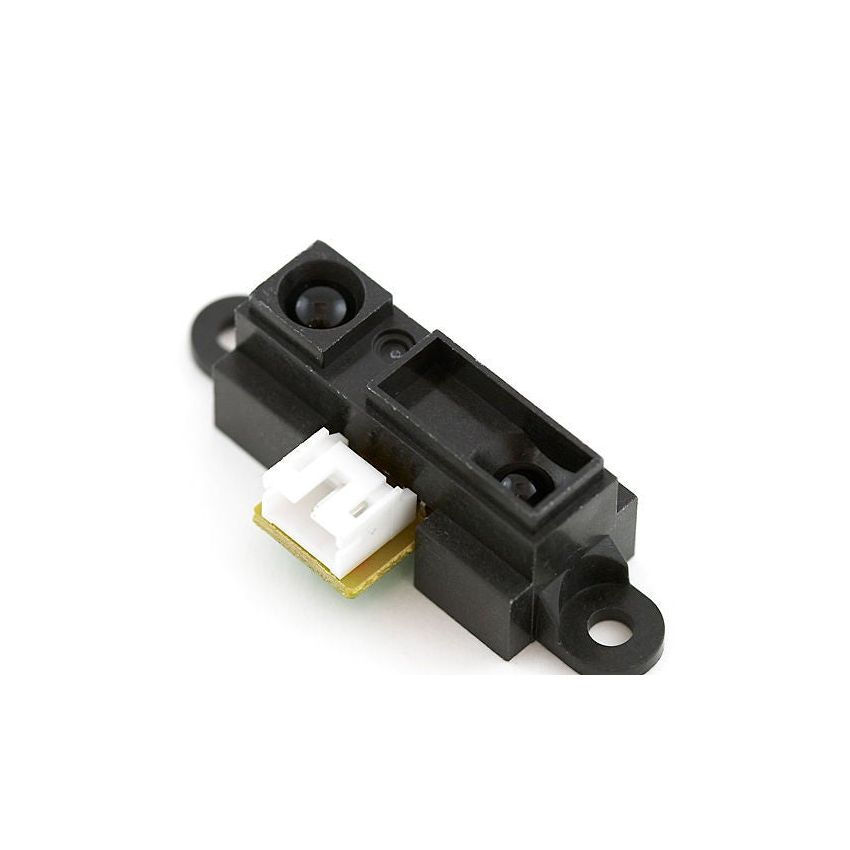

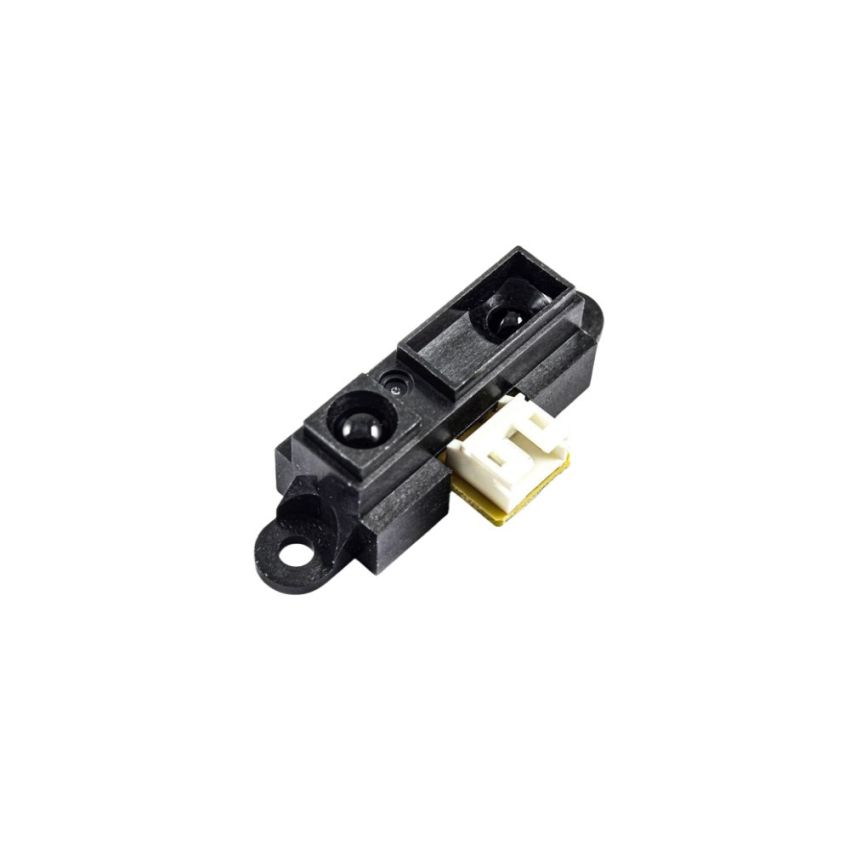

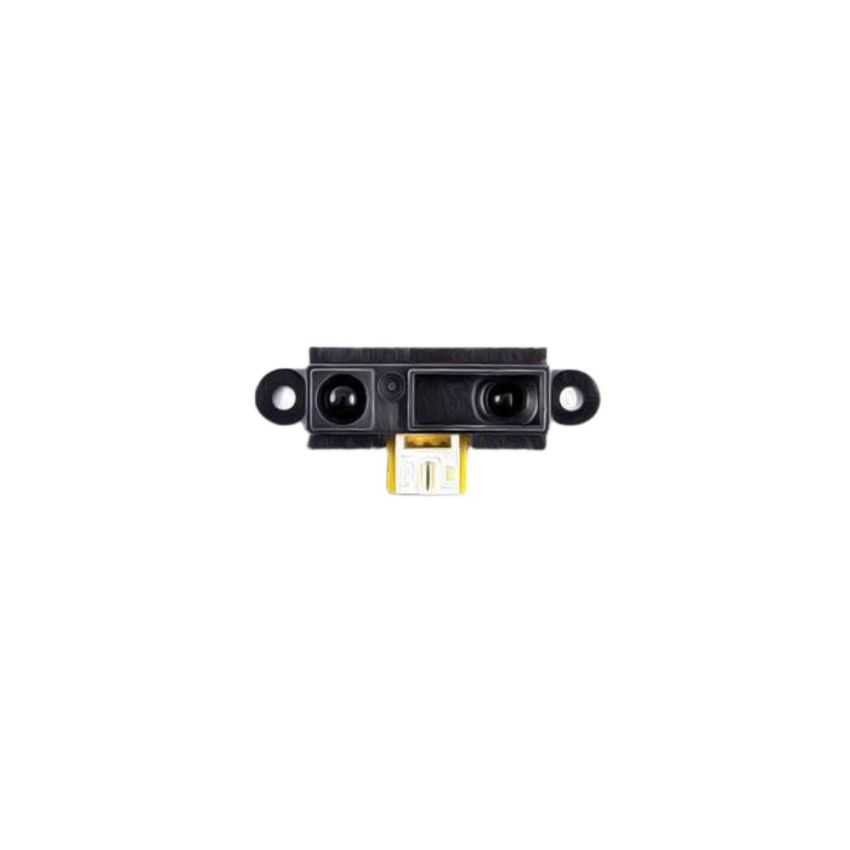

GP2Y0A41SK0F , Infrared Distance Sensor
AED 60.00
In stock
Only 5 left
Guarantee safe & secure checkout
Product Description
The Sharp GP2Y0A41SK0F is an infrared (IR) sensor that utilizes infrared waves to measure distances in a range of 4 cm to 30 cm. This sensor is widely used in various applications, including industrial automation and robotics, due to its ability to provide precise analog output that can be easily read by a microcontroller's ADC converter.
Key Features
- Sensing Distance: 4 cm to 30 cm, suitable for close-range measurements.
- Supply Voltage: 5 VDC (min and max).
- Operating Supply Current: 12 mA for efficient power consumption.
- Temperature Range: Operates between -10C and +60C for versatile usage in different environments.
- Output Configuration: Analog output for easy integration with microcontrollers.
- Mounting Style: Panel mount for convenient installation.
- Sensing Method: Optical, using infrared waves for distance measurement.
- Product Type: Distance sensor module, enclosed for protection and durability.
- Compact Dimensions:
- Height: 13.5 mm
- Length: 37 mm
- Width: 18.9 mm
- Packaging: Tray packaging for easy handling.
- Unit Weight: 3.6 g, lightweight for easy integration into designs.
Applications
- Robotics
- Industrial automation
- Proximity sensing
- Object detection
| Operating Voltage | 5 VDC |
|---|---|
| Sensor Type | Distance Sensor Module |
| Current Consumption | 12mA |
