TL-Q5MC1-Z , Generic Rectangular Standard Proximity Sensor, Sensing distance: 5 mm, Unshielded, DC 3-wire, NPN, NO, Cable length 2 m

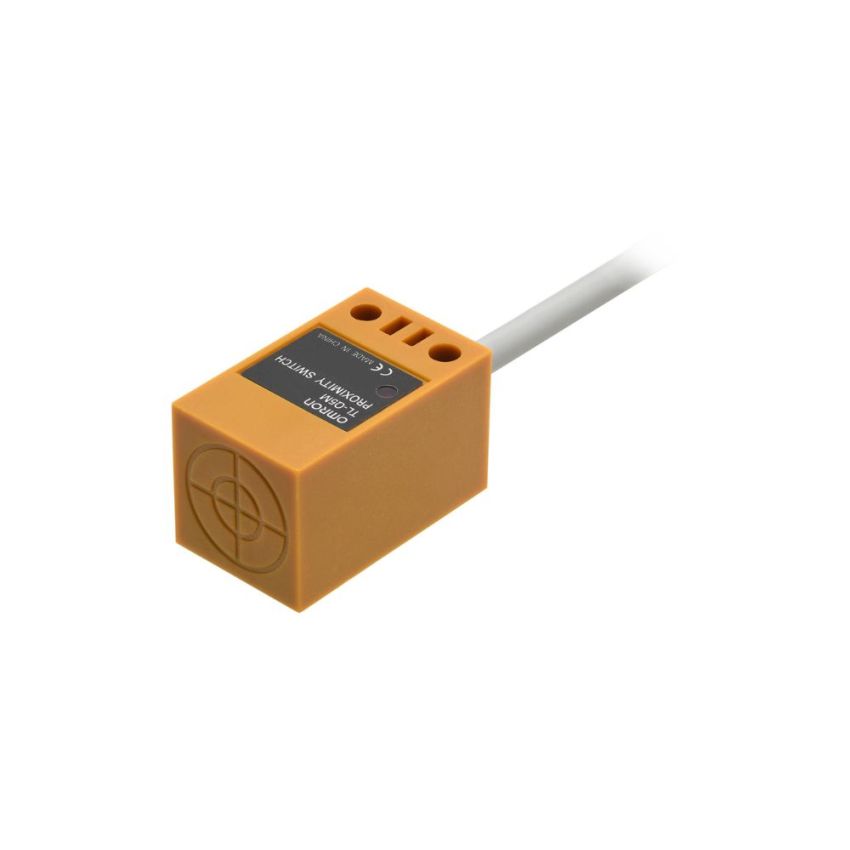

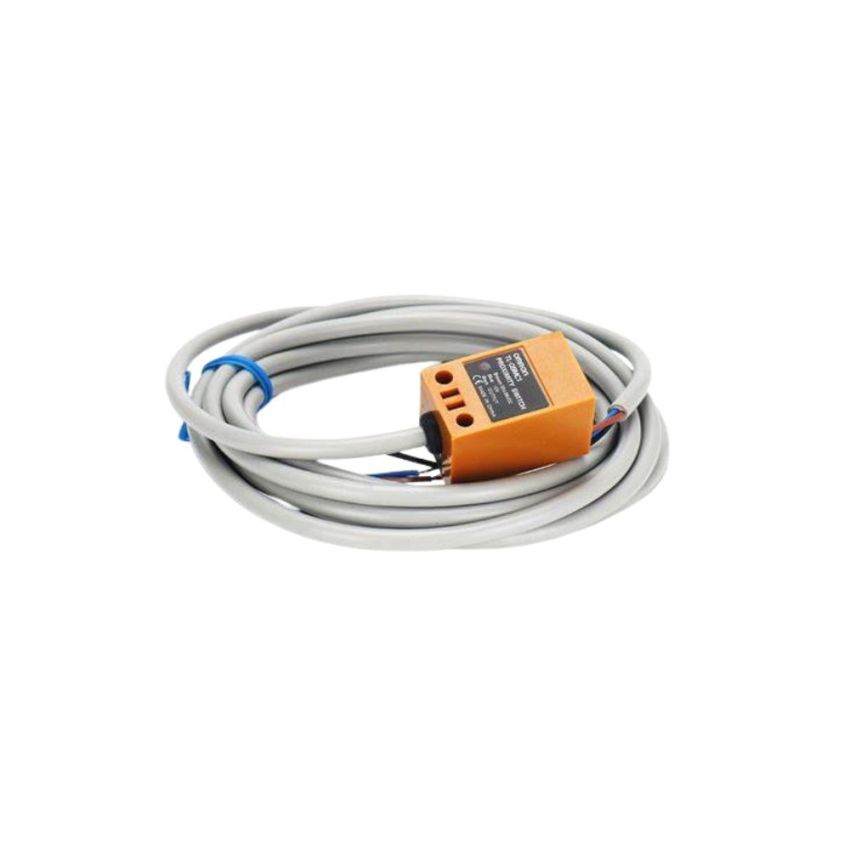

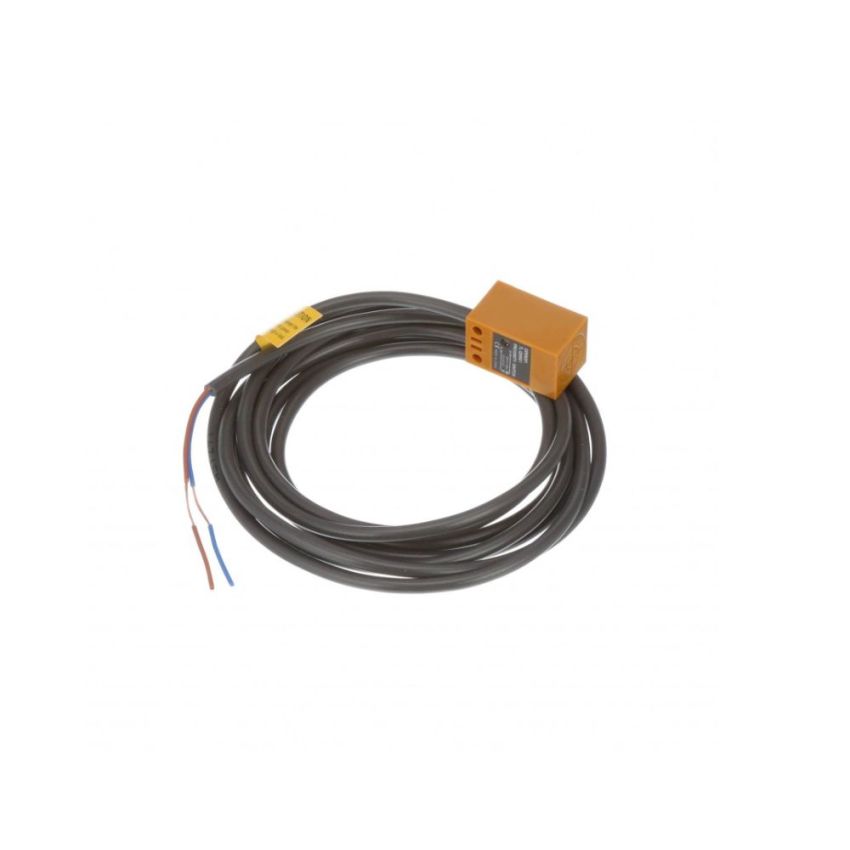

This rectangular proximity sensor offers reliable and precise detection with a 5 mm sensing distance, making it ideal for various industrial applications. Its robust design includes an unshielded square-type sensing head measuring 17 mm x 17 mm x 28 mm and features a pre-wired 2-meter cable for easy installation. Operating on a 12 to 24 VDC power supply with reverse polarity and surge protection, this DC 3-wire model utilizes an NPN open collector control output with a maximum switching capacity of 50 mA. The sensor's NO (Normally Open) operation mode ensures efficient and straightforward integration into automation systems.

Designed for durability, the sensor withstands harsh environments with an IP67 protection rating, temperature tolerance from -25 to 70 degree C, and resistance to vibrations and shocks. Its heat-resistant ABS resin casing ensures long-term reliability. The sensor's red detection indicator provides clear visual feedback for operational status.

Key Features

• Sensing Distance: Accurate detection up to 5 mm plus/ minus 10 percent, optimized for ferrous metals.
• Operation Mode: Normally Open (NO) for simple signal handling.
• Durability: Shock and vibration-resistant, IP67-rated for water and dust protection.
• Robust Construction: Heat-resistant ABS resin casing and sensing surface.
• Versatility: Operates in a wide voltage range (10 to 30 VDC) with minimal power consumption (10 mA at 24 VDC).
• User-Friendly Design: Includes a 2-meter pre-wired connection and a red detection indicator for convenience.
• Sensing Object: Optimized for ferrous metals, standard sensing object is iron (15 x 15 x 1 mm).
• Response Frequency: 500 Hz for quick detection.
• Control Output: NPN open collector, switching capacity of 50 mA max. at 30 VDC.
• Temperature and Voltage Influence: Minimal impact on sensing distance, maintaining precision under varying conditions.
• Insulation and Strength: 5 Mega ohm minimum insulation resistance and 500 VAC dielectric strength.
• Environmental Tolerance: Operates in humidity levels of 35 percent to 95 percent and temperatures between -25 to 70 C.
