Specifications :

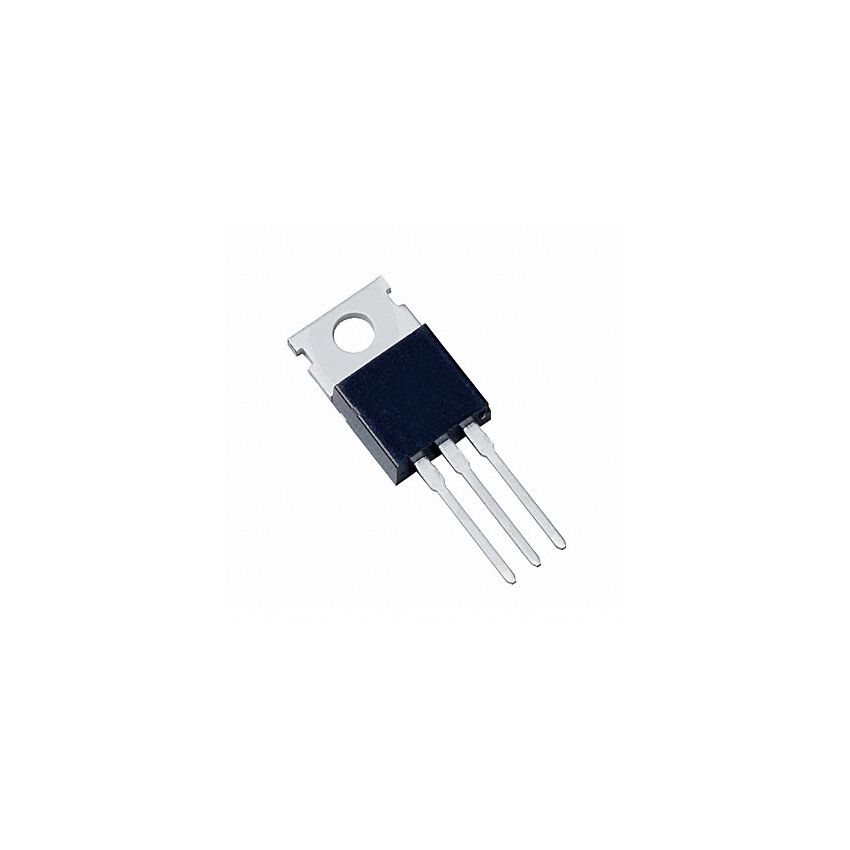

Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 115 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 40 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 55 nC
Rise Time (tr): 60 nS
Drain-Source Capacitance (Cd): 220 pF
Maximum Drain-Source On-State Resistance (Rds): 0.035 Ohm
