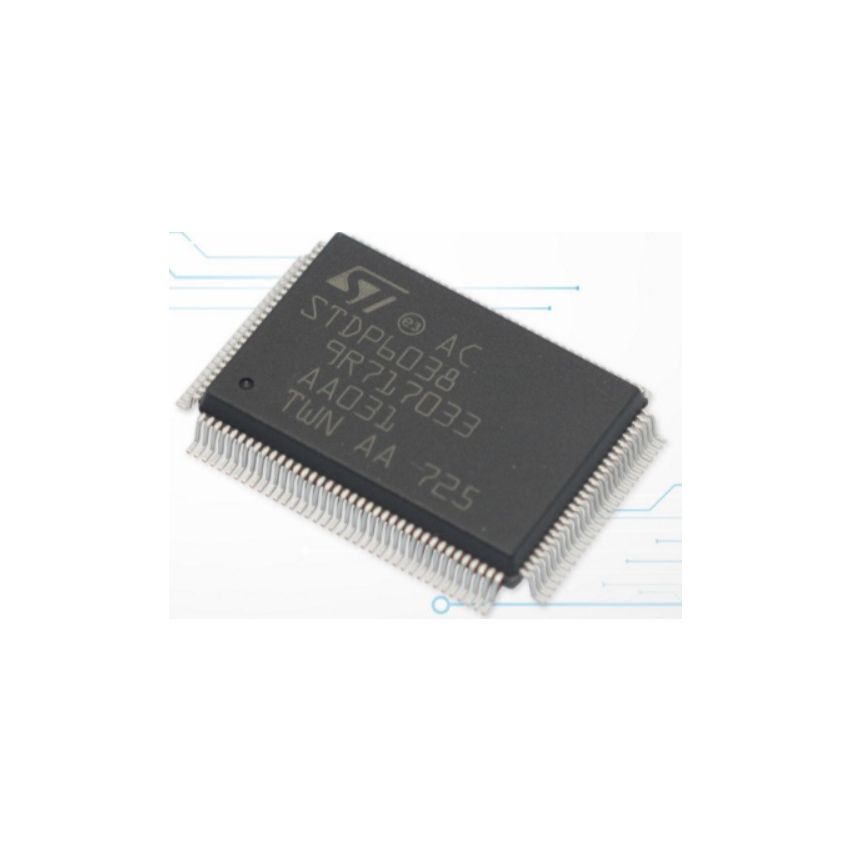

STDP6038
AED 45.00
In stock
Only 8 left
Guarantee safe & secure checkout
Guarantee safe & secure checkout
"STDP60xx is an all-in-one LCD monitor controller with analog (RGB), DVI, DisplayPort 1.1a inputs and supporting resolutions up to WUXGA in a 128 PQFP package. The STDP60xx leverages Genesis Microchip's patented advanced image-processing technology, as well as a proven integrated ADC/PLL and an Ultra-Reliable DVI compliant digital receiver to deliver a high-quality solution for mainstream dual input monitors. The output section contains a dual channel 8-bit LVDS transmitter for direct interfacing of commercially available LVDS LCD panel module. In addition, STDP60xx includes an integrated x86 OCM with SPI compatible interface, advanced color control features, a multicolor proportional font OSD engine, and a number of system I/O components. Along with the high quality and reliability, STDP60xx also provides a very low cost system design by reducing the number of system components by deploying on a small 2-layer PCB.
â– Programmable zoom and shrink scaling
â– DisplayPort 1.1a compliant receiver - 4-lane DisplayPort input
â– Ultra-Reliable DVI® receiver (165 MHz)
â– Triple-channel (10-bit) ADC (205 MHz) and PLL
â– Faroudja RealColor® color processing:– Image enhancement– 12-bit processing– Deep color support– xvYCC color space support
â– Dual channel 8-bit LVDS output
â– HDMI 1.3 RX integrated with I2S (L/R channel) or SPDIF audio output ports
â– Intel x86-compatible microcontroller with external SPI ROM interface
â– 12-bit panel gamma correction and high-quality dithering for 8-bit and 6-bit panel interface
â– DDC controller for host interface purposes
â– PWM signals for backlight, audio volume control, etc.
â– Energy Spectrum Management® (ESM®)
â– Package: 128-pin PQFP
â– WSXGA /FHD/WUXGA LCD monitors with VGA, DP, HDMI 1.3 or DVI inputs (supports wide-gamut panels and high color fidelity applications)
"
