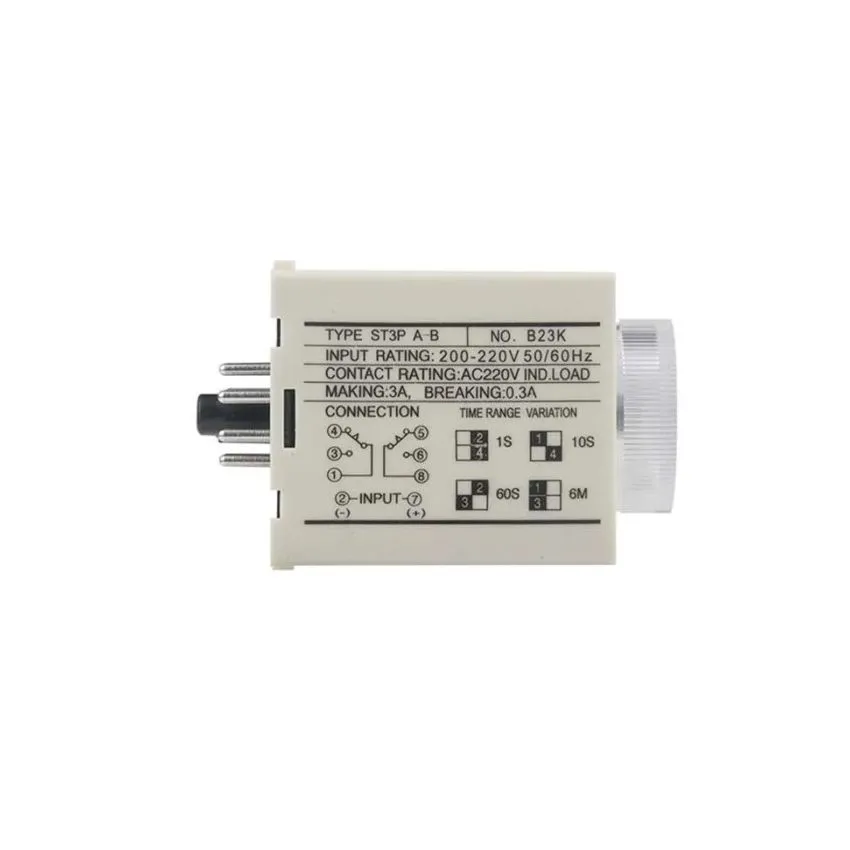

ST3P-A-B ,Super Timer, Multi-Range, 200-220V AC, 50/60Hz

The Fuji Electric ST3P-A-B Super Timer is a high-quality multi-range timer designed for industrial and automation applications. This timer features a wide input voltage range of 200-220V AC at 50/60Hz, making it suitable for various electrical systems. The unit offers precise time delay functionality with selectable time ranges from 1.5 seconds to 6 minutes, allowing flexibility in different timing operations. The ST3P-A-B model has a contact rating of AC 200V for inductive loads, ensuring reliable switching. It supports a making current of 3A and breaking current of 0.3A, providing durability and efficiency in long-term operation. The rotary dial on the front panel allows users to easily set the timing parameters, while the LED indicator provides a clear visual cue of operation status. The compact and robust construction makes it ideal for industrial automation, motor control, conveyor systems, and sequential control applications.

Key Features:

• Multi-Range Time Delay: Adjustable timing from 1.5s to 6 minutes for versatile applications.
• Wide Input Voltage: Operates on 200-220V AC, 50/60Hz, suitable for various industrial environments.
• Reliable Contact Rating: AC 200V inductive load handling, ensuring long-lasting performance.
• High Durability: Supports 3A making current and 0.3A breaking current.
• Easy Time Adjustment: Rotary dial with clear scale markings for precise settings.
• Compact & Industrial-Grade: Designed for automation, motor control, and industrial timing applications.

Additional Specifications:

• Type: Multi Range Timer
• Operating Supply Voltage: 200-220V AC, 50/60Hz
• Timing Range: 1.5s, 10s, 60s, 6min
• Display Type: Analog Rotary Dial
• Accuracy: ±5%
