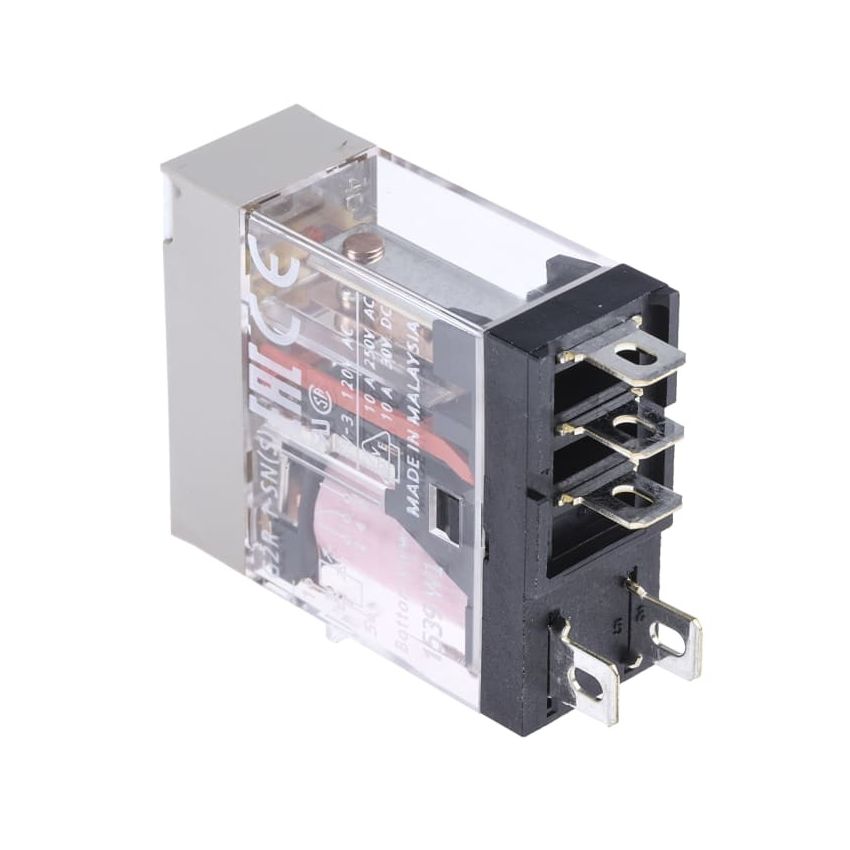

G2R-1-SN AC110(S), General-Purpose Power Relay, 10A, Plug-In,110VAC,SPDT

The Omron G2R-1-SN AC110(S) is a general-purpose power relay designed for reliable performance in various electrical applications. With its SPDT contact configuration, it offers flexible switching capabilities, handling currents up to 10A. The relay features both mechanical and LED indicators, providing clear visual feedback on its operating status. Its plug-in design ensures straightforward installation and maintenance, making it a practical choice for control panels, automation systems, and other industrial setups.​

Key Features:

• High Switching Capacity: Handles up to 10A at 250VAC or 30VDC, suitable for various applications.​
• SPDT Contact Configuration: Single Pole Double Throw design offers versatile switching options.​
• Visual Indicators: Equipped with a mechanical operation indicator and LED for easy status monitoring.​
• Plug-In Mounting: Designed for use with compatible sockets like P2RF-05-PU, facilitating easy installation and replacement.​
• Transparent Housing: Allows for visual inspection of internal components and operation.​
• Wide Operating Temperature Range: Functions reliably between -40°C and +70°C, suitable for diverse environments.​

Additional Specifications:

• Type: Electromechanical Power Relay​
• Number of Channels: 1
• Coil Voltage: 110Vac
• Switching Voltage (VDC)/Current: 30Vdc At 10A
• Switching Voltage (VAC)/Current: 250Vac At 10A
