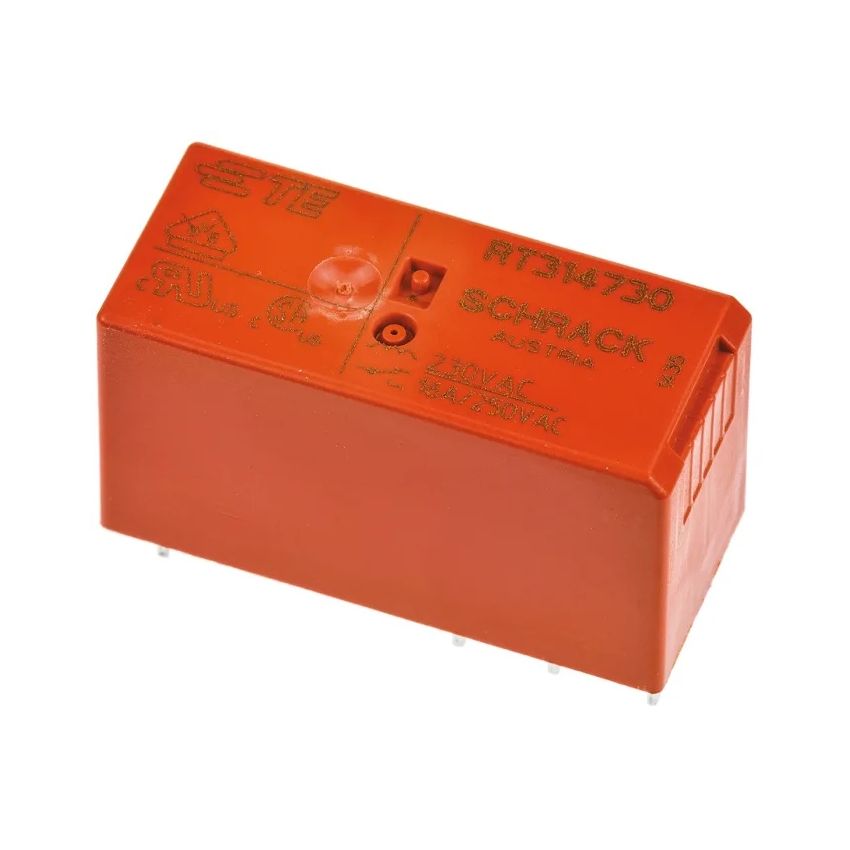

RT314730, Power PCB Relay Schrack RT1 Series,230VAC,16A,SPDT

The TE Connectivity RT314730 is a general-purpose power relay from the Schrack RT1 series. Designed for PCB mounting, this relay features a 230V AC coil and an SPDT contact configuration, capable of handling up to 16A at 250VAC. Its compact size and robust construction make it ideal for applications such as boiler control, timers, garage door systems, and interface modules. The relay's high dielectric strength and Class F coil insulation ensure reliable operation in demanding conditions.​

Key Features:

• High Switching Capacity: Rated for 16A at 250VAC, suitable for demanding applications.​
• Robust Contact Configuration: Single Pole Double Throw (SPDT) for versatile switching.​
• Enhanced Safety: 5kV dielectric strength between coil and contacts ensures reliable insulation.​
• Compact Design: Measures 29mm × 12.7mm × 15.7mm, ideal for space-constrained PCB layouts.​
• Durable Construction: Silver Nickel (AgNi 90/10) contacts for long-lasting performance.​
• Wide Operating Temperature Range: Operates from -40°C to +70°C, suitable for various environments.​

Additional Specifications:

• Type: Power PCB Relay
• Number of Channels: 1
• Coil Voltage: 230Vac
• Switching Voltage (VDC)/Current: N/A
• Switching Voltage (VAC)/Current: 250Vac At 16A
