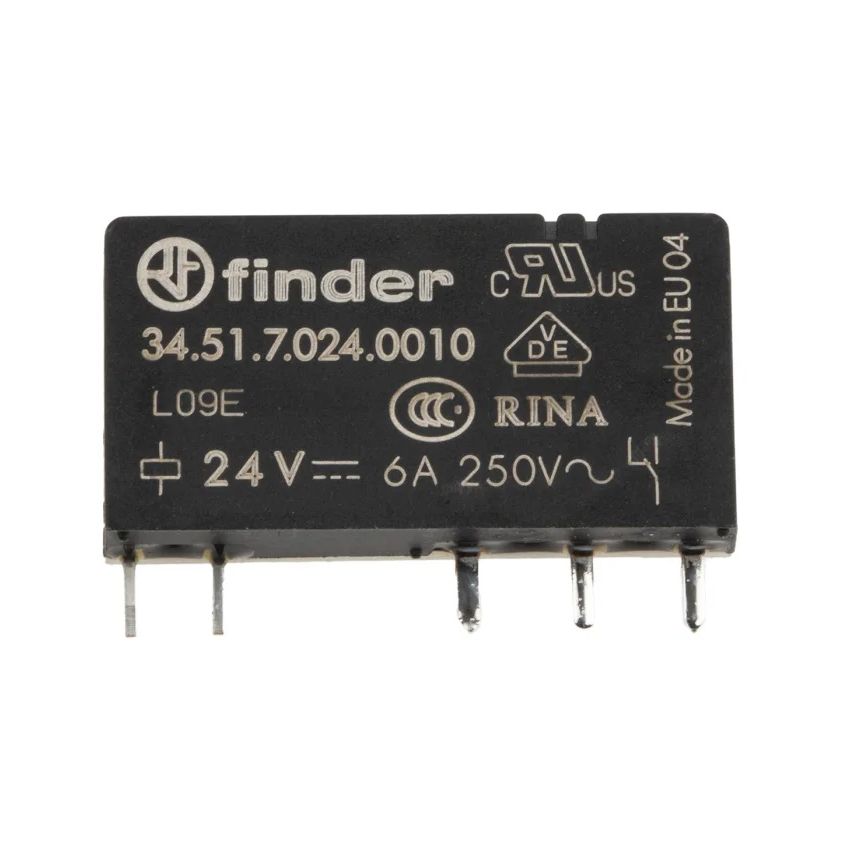

34.51.7.024.0010 Ultra-Slim Electromechanical Relay, SPDT, 24VDC Coil, 6A, PCB Mount

The Finder 34.51.7.024.0010 is a compact electromechanical relay designed for applications requiring reliable switching in space-constrained environments. With its ultra-slim 5 mm profile, it fits seamlessly into densely populated PCBs. The relay features a sensitive 24 VDC coil with low power consumption, making it ideal for energy-conscious designs. Its SPDT contact configuration and high dielectric strength ensure versatility and safety across various applications, including industrial automation, HVAC systems, and control panels.​

Key Features:

• Ultra-Slim Design: 5 mm wide, ideal for high-density PCB applications.​
• Sensitive DC Coil: Low power consumption at 170 mW, suitable for energy-efficient designs.​
• High Dielectric Strength: 6 kV (1.2/50 μs) insulation between coil and contacts ensures robust isolation.​
• SPDT Contact Configuration: Versatile single-pole double-throw setup for various switching needs.​
• Flux-Proof Enclosure (RT II): Protects against soldering flux and environmental contaminants.​
• Wide Operating Temperature Range: Performs reliably between -40°C and +85°C.​

Additional Specifications:

• Type: Electromechanical Relay​
• Number of Channels: 1
• Coil Voltage: 24Vdc
• Switching Voltage (VDC)/Current: 30Vdc At 6A
• Switching Voltage (VAC)/Current: 250Vac At 6A
