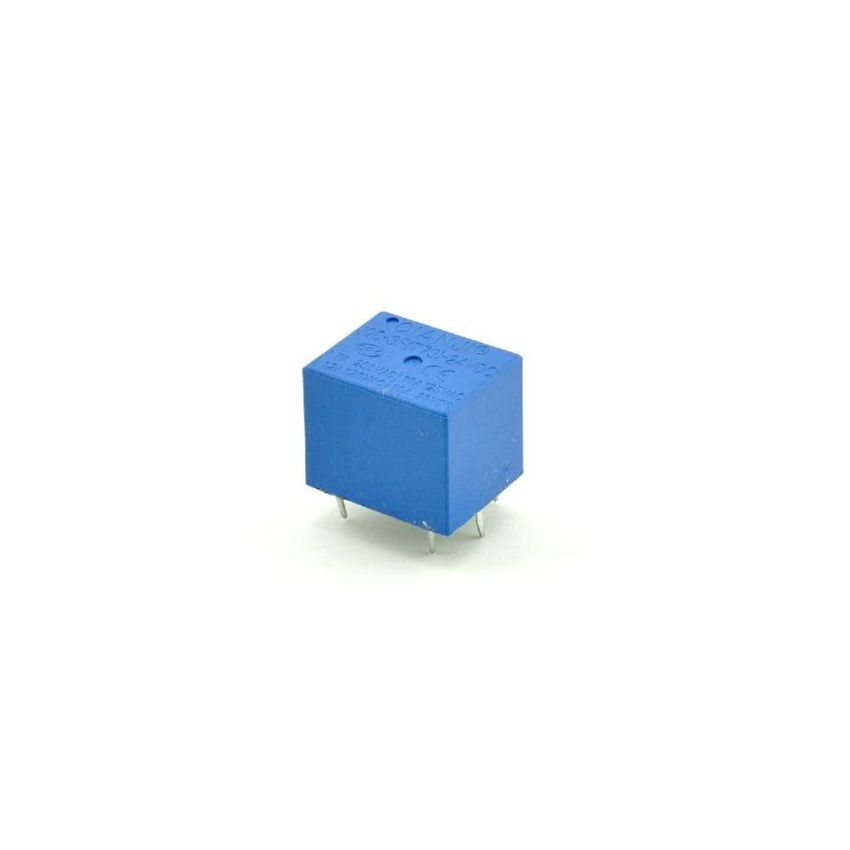

JQC-3F(T73)-24VDC General Purpose Power Relay - SPDT, 24VDC Coil, 10A

The JQC-3F(T73)-24VDC is a Single Pole Double Throw (SPDT) general-purpose power relay, widely used in switching applications for home appliances, industrial equipment, and automation systems. It operates on a 24VDC coil voltage, capable of switching both AC and DC loads with high reliability. This compact, PCB-mountable relay is designed to handle a maximum current of 10A at 125VAC and 10A at 28VDC, making it ideal for medium power switching tasks. The relay's robust build ensures dependable performance in various environmental conditions.

Key Features:

• Rated Coil Voltage: 24VDC, suitable for direct integration with 24V logic and control circuits.
• Contact Configuration: SPDT (Single Pole Double Throw) for flexible switching.
• Contact Rating: 10A at 125VAC / 28VDC, capable of handling high-current loads.
• Compact, sealed enclosure for PCB mounting, ensuring protection against dust and humidity.
• Dielectric Strength: 1500VAC (between coil and contacts) for safety and isolation.
• Mechanical Life: Up to 10 million operations, ensuring long operational reliability.

Additional Specifications:

• Switching Voltage (VDC)/Current: SPDT
• Switching Voltage (VAC)/Current: 1
