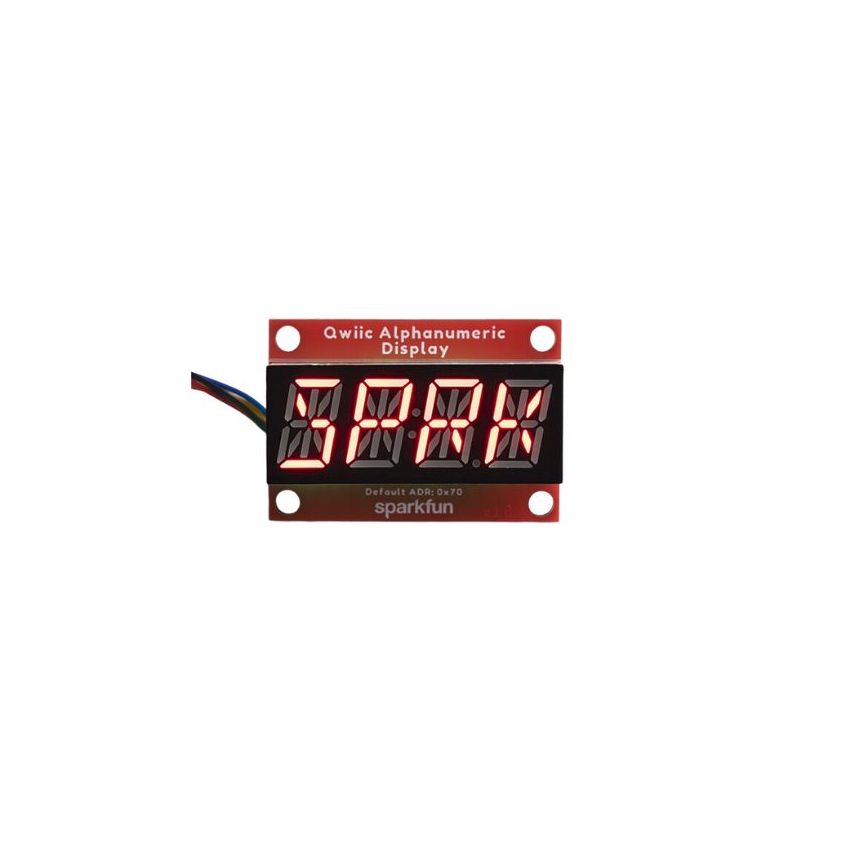

SparkFun Qwiic Alphanumeric Display - Red

SKU
ODDx0114
Brand:
In stock
Only 4 left
Add to Wish List

Guarantee safe & secure checkout

Description :

SparkFun Qwiic Alphanumeric Display has 14 segment digits to display numbers, characters, and symbols.
No soldering or figuring out wiring is required, just plug it in with Qwiic
Comes with an Arduino library that makes printing strings to the display as easy as calling the print() function
I2C commands are sent to the VK16K33 LED driver chip to light up segments
Supports I2C address configuration to communicate with up to 4 displays on the same bus
Slim board design with detachable stand-off holes, vertical Qwiic connectors, and interN/Al mounting holes.

Specifications:

Red display
Operating Voltage: 3.3V
Integrated RC oscillator
Maximum display segment numbers: 128 patterns
13×3 matrix key scan circuit
16-step dimming circuit
I2C Addresses: 0x70 (0x71, 0x72, 0x73)
2x Qwiic connectors
2x Wall Mounting Points
