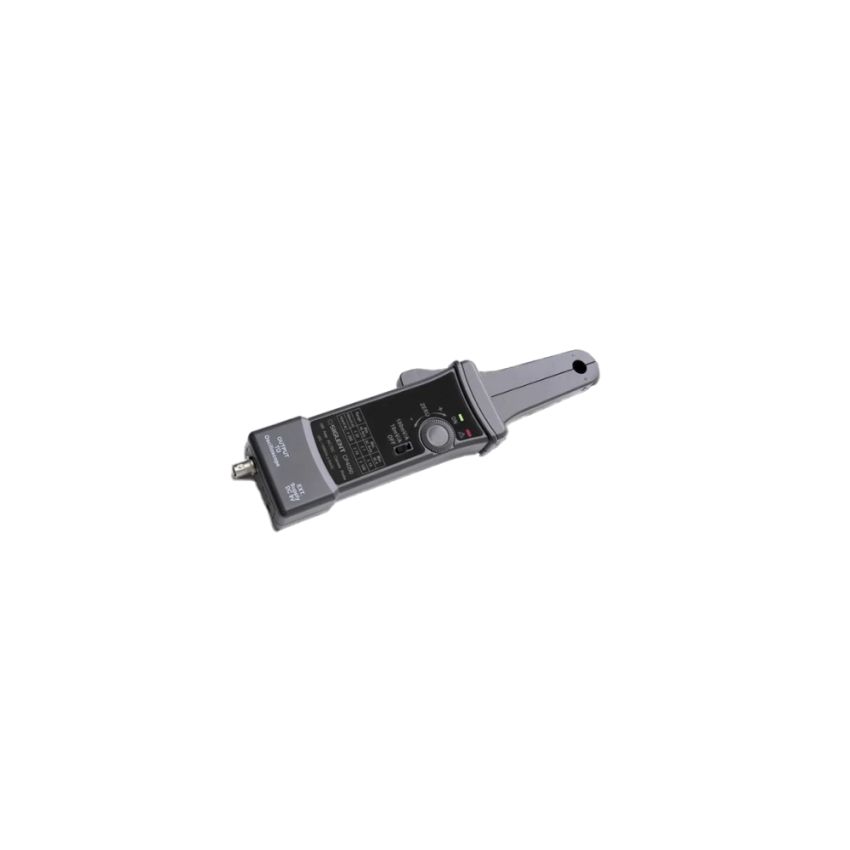

CP4050 AC DC Current Probe 1 MHz Bandwidth 50 ARMS Continuous 140 A Peak

The CP4050 current probe from Siglent is a rugged, dual-range AC and DC clamp probe designed for general-purpose current measurement applications. With a DC to 1 MHz bandwidth, it measures continuous currents up to 50 ARMS and peaks of 140 A, offering excellent dynamic range. Two selectable attenuation settings (500 mV/A and 5 mV/A) allow precision measurements across low to high current loads. Equipped with DC accuracy ratings of ±3%±20 mA (20 mA–14 A p‑p at 500 mV/A), ±4%±200 mA (200 mA–100 A p‑p at 50 mV/A), and up to ±15% at high-peak currents (100 A–140 A p‑p), the CP4050 ensures reliable readings. It features a 1 m BNC output cable, powered by a 9 V battery, with auto‑zero calibration and overload indication. The clamp accepts conductor diameters up to 10.3 mm, supports CAT III 300 V / CAT II 600 V safety ratings, and weighs approximately 310 g with probe body dimensions around 262 × 81 × 36 mm. Packaged dimensions are about 32 × 26 × 9 cm. Ideal for applications in power electronics, motor testing, automotive/high-voltage validation, and industrial troubleshooting.

Key Features

• Measures both AC and DC currents up to 50 ARMS continuous and 140 A peak using dual-range clamp capability.
• Offers wide bandwidth of 1 MHz (–3 dB, rise time ≤ 0.35 µs) for capturing fast transient currents.
• Selectable attenuation: 500 mV/A and 5 mV/A for flexible range coverage.
• Achieves high DC measurement accuracy: ±3%±20 mA at low range, ±4%±200 mA at mid range, up to ±15% at highest p‑p currents.
• Auto‑zero offset calibration and overload warning indicator enhance usability and safety.
• Clamp accepts up to 10.3 mm conductor and includes a 1 m BNC cable, with battery or adapter power.
