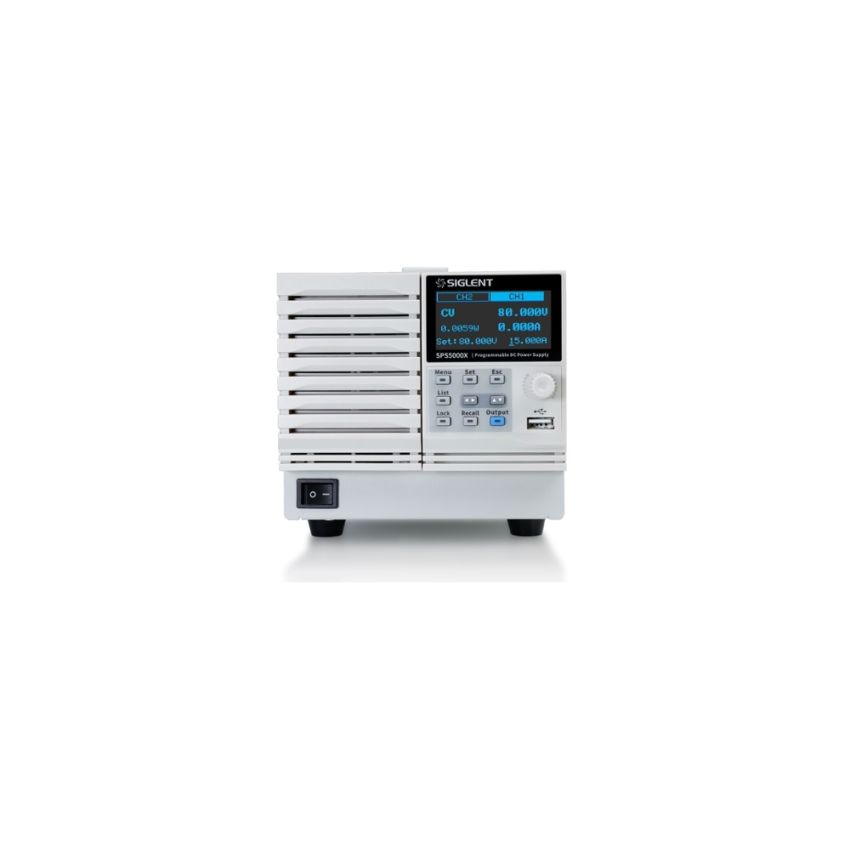

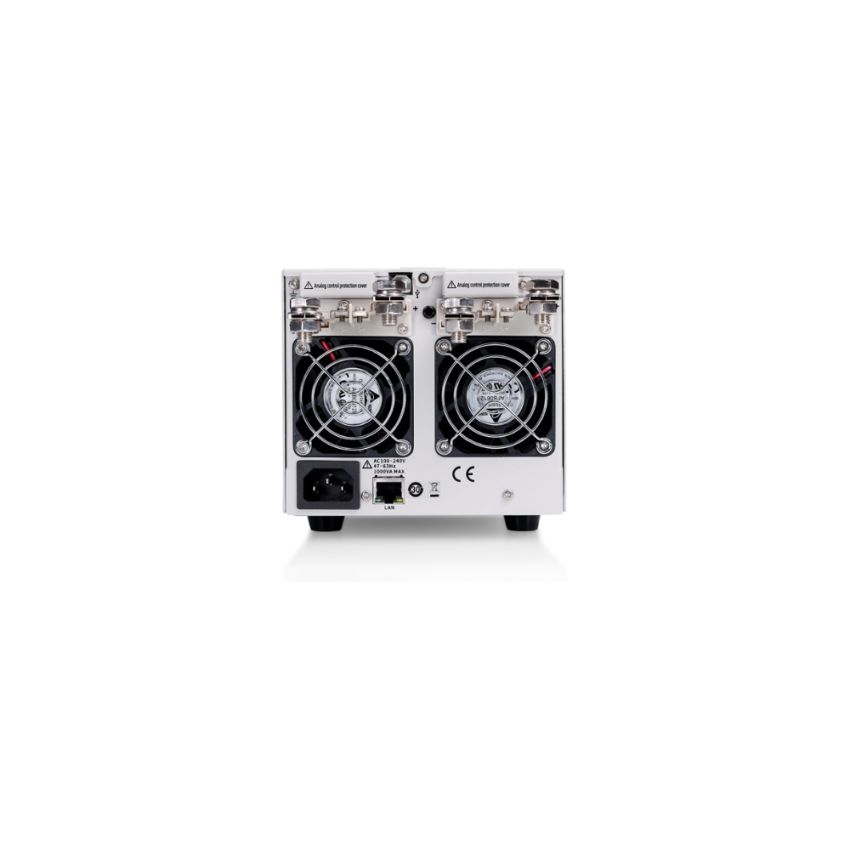

SPS5084X, Dual‑Channel Programmable Switching DC Power Supply, 80 V/15 A Per Channel, 720 W Total

The Siglent SPS5084X is a dual-channel programmable switching DC power supply designed for demanding lab, industrial, and R&D use. It delivers up to 720 W of total output power, with each channel supporting 0–80 V and up to 15 A. A high-brightness 2.4″ OLED display (170° viewing angle) provides real-time monitoring of voltage, current, and waveform behavior. The supply supports CV/CC priority modes, list-sequence programming (up to 50 steps), adjustable slew rates, remote sensing, and integrated protection mechanisms including over-voltage, over-current, over-power, and over-temperature. USB and LAN connectivity with embedded web server support easy remote operation; optional GPIB provides enhanced automation flexibility. Compact and efficient, the unit is ideal for system integration and bench use.

Key Features

• Dual isolated output channels: each offers 0–80 V, 0–15 A (360 W per channel)
• High programming and readback resolution of 1 mV / 1 mA
• List sequence mode with up to 50 programmable steps via front panel or network
• Fast transient recovery (< 1 ms) with adjustable voltage/current slew rates
• Remote sensing and internal discharge circuitry for accurate load performance
• Over‑voltage, over‑current, over‑power, and over‑temperature protection
