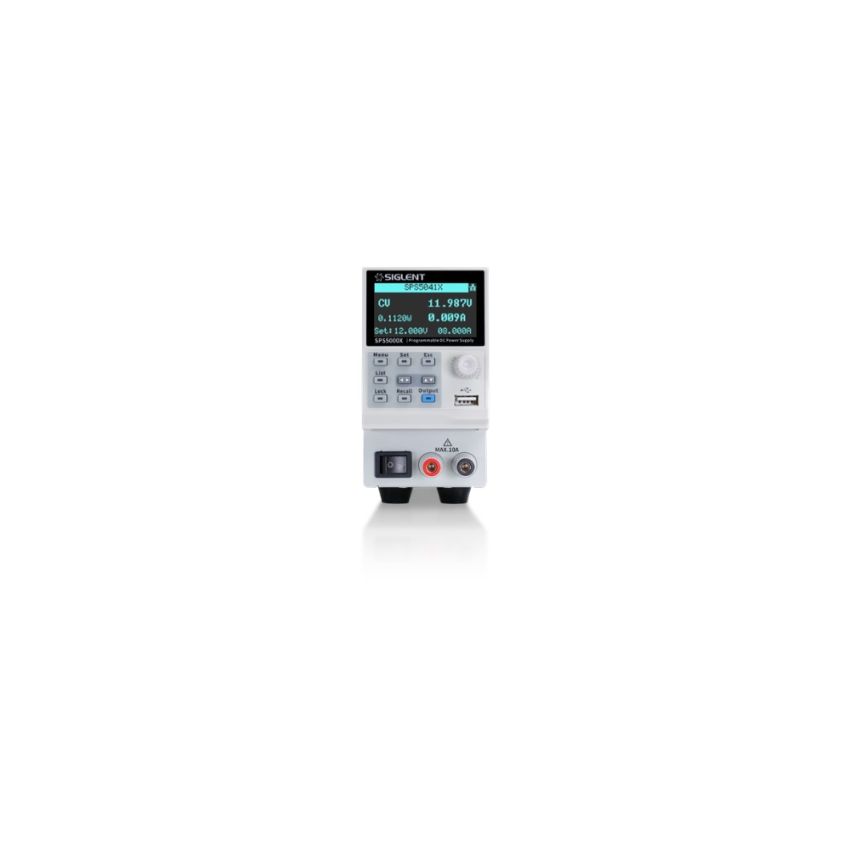

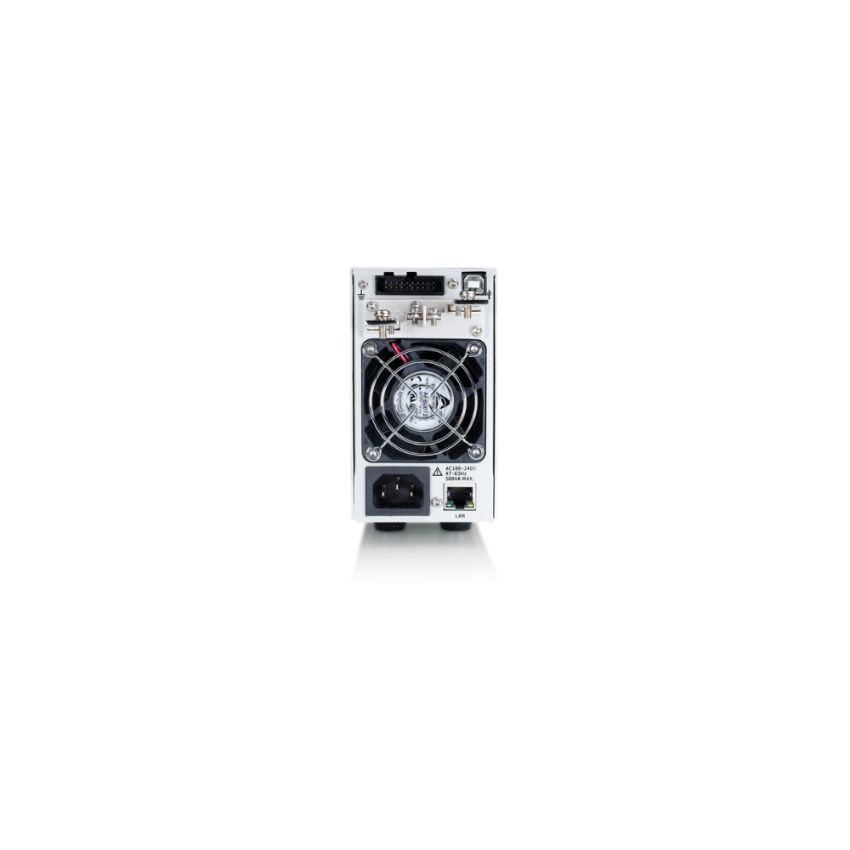

SPS5041X, Single-Channel Programmable Switching DC Power Supply, 40V/30A, 360W

The Siglent SPS5041X is a high-precision programmable switching DC power supply designed for laboratory, industrial, and educational applications. It offers a single output channel with a maximum output power of 360W, providing a voltage range of 0–40V and a current range of 0–30A. The power supply features a 2.4-inch OLED display with high resolution, allowing for precise voltage and current settings. It supports list sequence programming up to 50 steps, adjustable slew rates, and offers over-voltage, over-current, over-power, and over-temperature protection. Additionally, the SPS5041X includes remote sensing capabilities to compensate for voltage drops in the test leads, ensuring accurate voltage delivery to the load.

Key Features

• Single-channel output: 0–40V, 0–30A, total power up to 360W
• High-resolution voltage and current settings with 1mV/1mA programming and readback accuracy
• List sequence programming up to 50 steps from the front panel or via LAN/USB interfaces
• Adjustable voltage and current slew rates for controlled output transitions
• Over-voltage, over-current, over-power, and over-temperature protection mechanisms
• Remote sensing function to compensate for voltage drops in test leads
