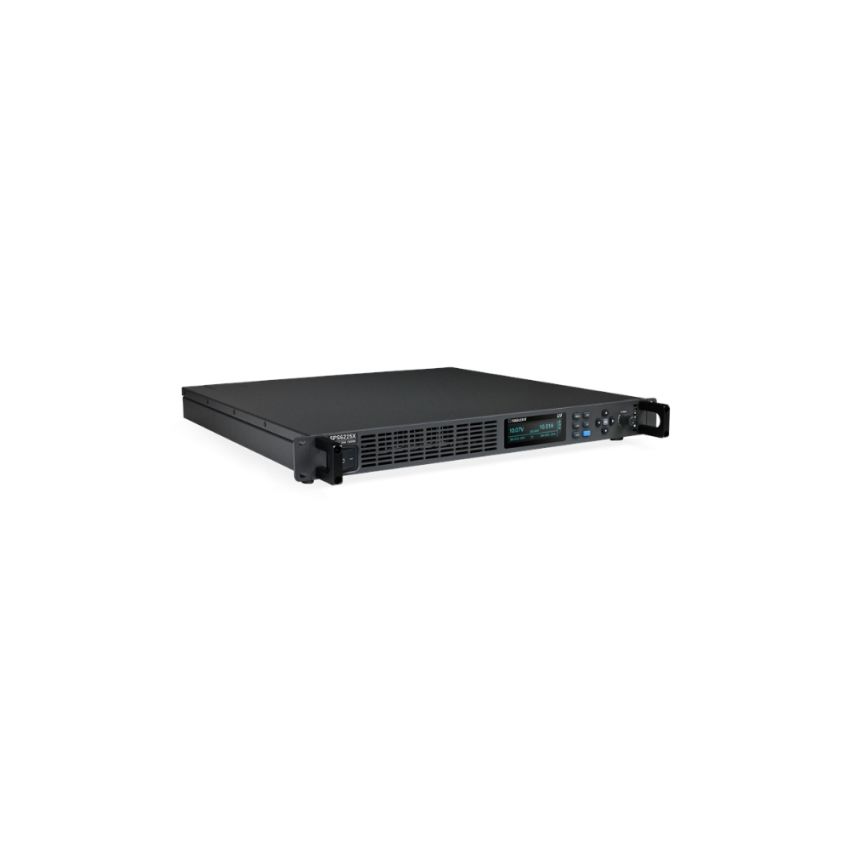

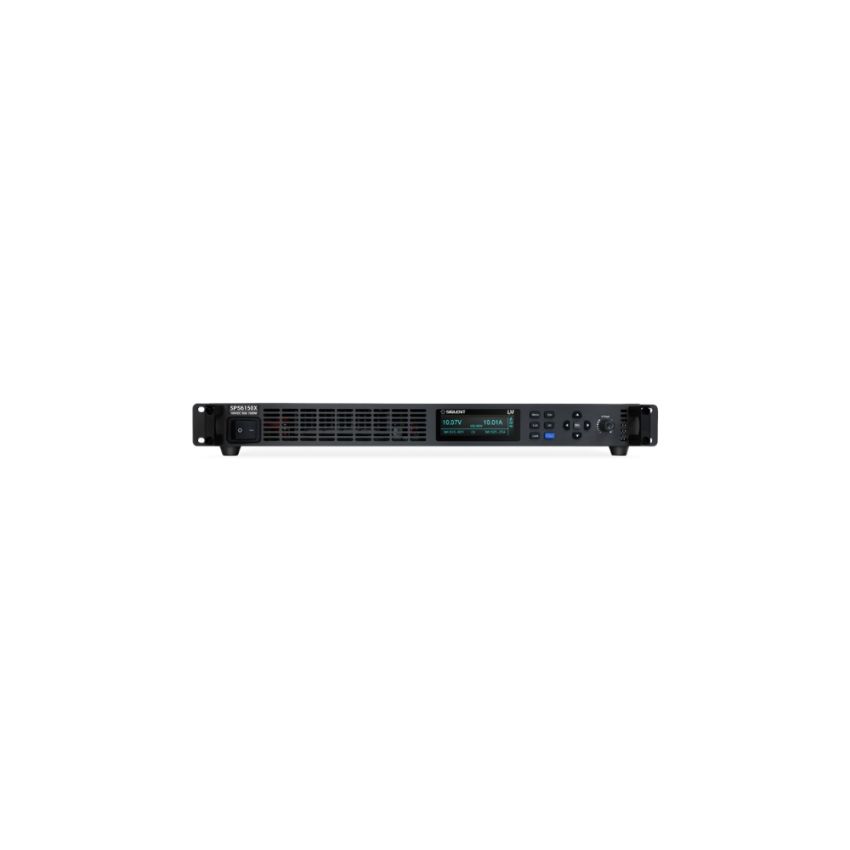

SPS6150X, Single-Channel Programmable Switching DC Power Supply, 100 V / 50 A, 1500 W

The Siglent SPS6150X is a high-performance programmable switching DC power supply designed for demanding laboratory and industrial applications. It delivers up to 1500 W of output power through a single channel, with a rated output of 100 V and 50 A. This power supply features a wide output voltage and current range, allowing for flexible testing scenarios. It supports constant voltage (CV) and constant current (CC) modes, with priority selection to protect equipment under test. The SPS6150X offers adjustable voltage and current slew rates, a load transient recovery time of less than 2.5 ms, and a setting and readback resolution of 10 mV and 10 mA, respectively. Additionally, it includes a remote sense function to compensate for lead resistance errors. The power supply is equipped with USB, LAN communication interfaces, and optional GPIB connectivity for remote control and automation. Its compact 1U form factor makes it suitable for space-constrained environments.

Key Features

• Single-channel output: 100 V / 50 A, 1500 W
• CV/CC priority mode selection for equipment protection
• Load transient recovery time < 2.5 ms
• Adjustable voltage and current slew rates
• Setting and readback resolution: 10 mV, 10 mA
• Remote sense function to decrease lead resistance error
