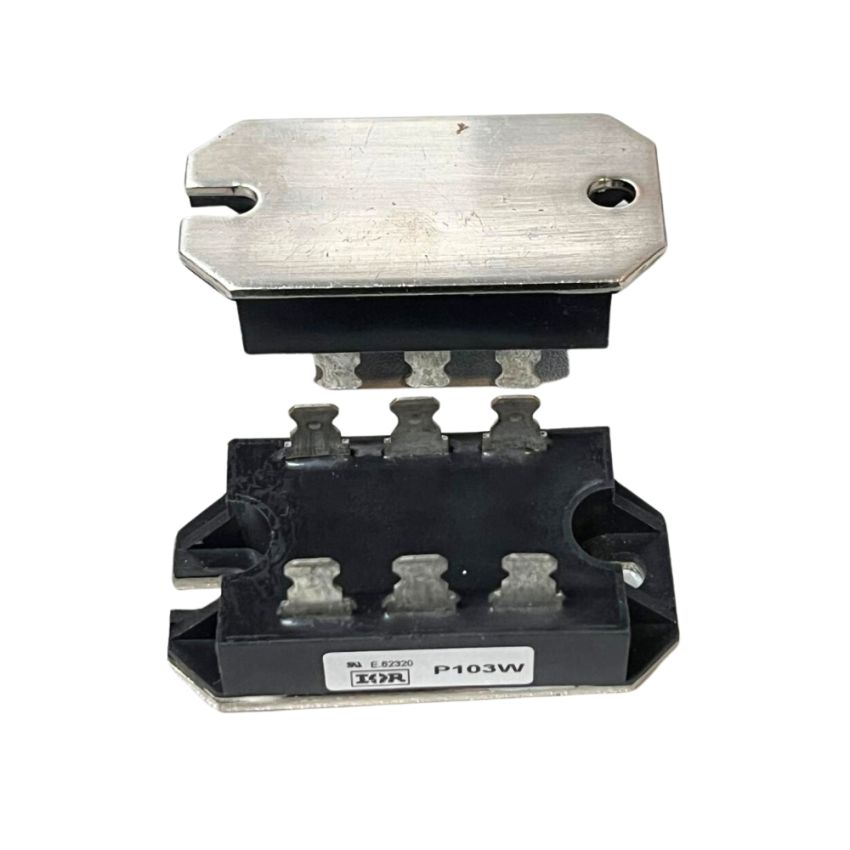

P103W ,Power Module, 25A, 1200V Peak Reverse Voltage, Passivated Circuit Element

Key Features:

• High Current Capacity: Continuous DC output current up to 25A.
• High Voltage Tolerance: Maximum peak reverse voltage of 1200V.
• Efficient Design: Electrically isolated base plate for improved heat dissipation and simplified assembly.
• Durable Construction: Glass passivated junctions for greater reliability.
• Wide Operating Temperature Range: -40°C to +125°C.
• Compact Package: PACE-PAK (D-19) module style for easy installation.

Additional Specifications:

• Type : Diode Power Module
• Mounting Style : PACE-PAK (D-19)
• Peak Reverse Repetitive Voltage (VRRM) : 1200V
• Forward Average Current (If) : 25A
• Forward Voltage (Vf) : 1.5V
• Maximum Surge Current (ITSM) : 375A
• Reverse Current (Ir) : 100 µA
• Dimensions : 6.3 x 2.5x 1.5 cm
