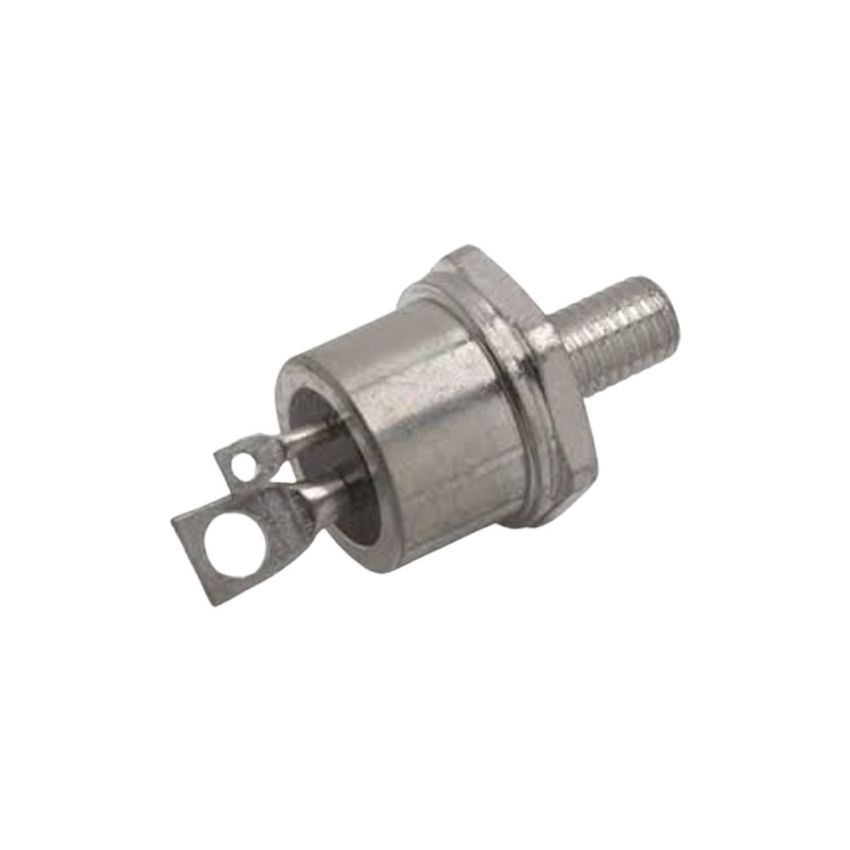

40RIA120, SCR Thyristor, TO-65 Package
AED 60.00
In stock
Only 1 left
Guarantee safe & secure checkout
The 40RIA120 is a silicon-controlled rectifier (SCR) thyristor designed for high-power control applications such as motor speed control, power regulators, and industrial power conversion. With a 1200V blocking voltage and 40A current rating, it ensures reliable operation in demanding environments. The TO-65 package improves heat dissipation, making it ideal for continuous high-power operation.
Key Features:
- High Voltage Capability – Rated for 1200V repetitive peak off-state voltage (VDRM).
- High Current Handling – Supports 40A average on-state current (IT(AV)).
- Surge Protection – Can withstand 500A surge current for high transient loads.
- Low On-State Voltage Drop – Enhances efficiency with a 1.55V forward voltage at 40A.
- Fast Switching Capability – Ideal for phase control applications.
- Robust Metal Case (TO-65) – Provides excellent thermal performance and durability.
| Non Repetitive Surge Peak on-state Current(ITSM) | 500A |
|---|---|
| Gate Trigger Current(Igt) | 40mA |
| Gate Trigger Voltage(Vgt) | 1.5V |
| Mounting Style | Stud Mount |
