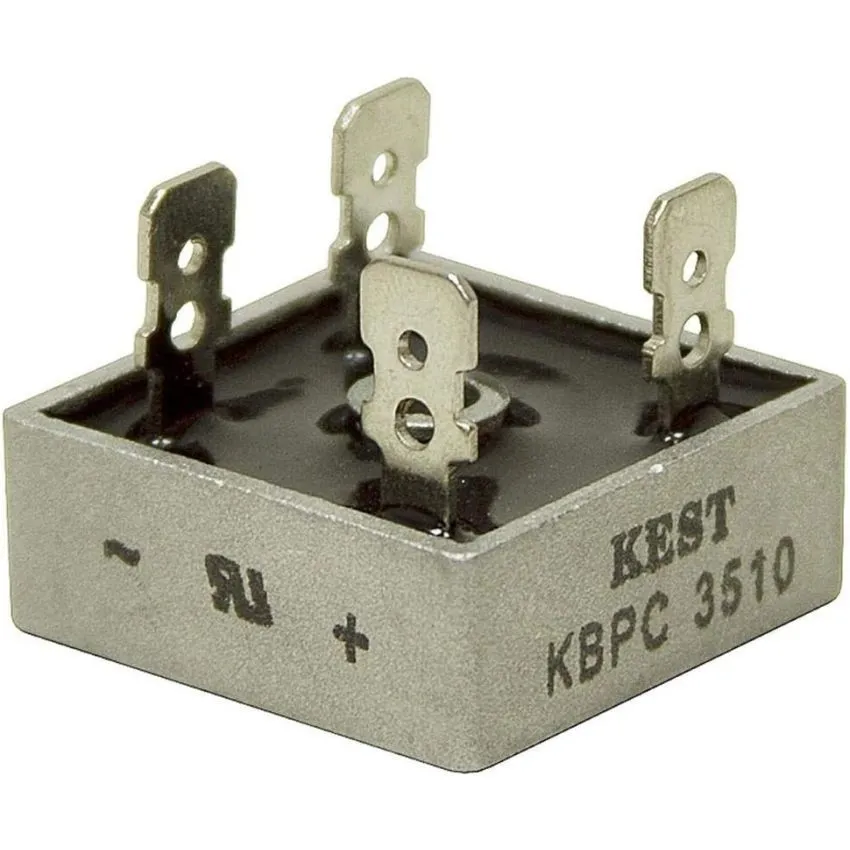

KBPC3510, 35A 1000V Single-Phase Bridge Rectifier, Metal Case

The KBPC3510 is a robust single-phase bridge rectifier designed for high-current applications. Its metal case construction ensures efficient heat dissipation, while the electrically isolated base enhances safety. With its high surge current capability and low forward voltage drop, the KBPC3510 is ideal for use in power supplies, battery chargers, and motor control systems.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1000V peak reverse voltage and 35A average forward current, suitable for high-power applications.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.1V per diode at 17.5A, minimizing power loss.​
• High Surge Capability: Capable of handling surge currents up to 400A, enhancing durability under transient conditions.​
• Electrically Isolated Metal Case: Provides 2500V RMS isolation voltage, ensuring safety and reliability.​
• Versatile Mounting Options: Features universal 3-way terminals (snap-on, wire wrap-around, or PCB mounting) and a central mounting hole for secure installation.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +150°C.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier
• Mounting Style: Panel Mount
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 35A
• Forward Voltage (Vf): 1.1V At 17.5A
• Maximum Surge Current: 400A
• Reverse Current (Ir): 10μA
• Dimensions: 28x28x25Mm
