2N7002,N-Channel MOSFET,SOT-23

The 2N7002 is a compact, low-power N-Channel MOSFET designed for use in switching applications such as **load switches, DC-DC converters, and relay drivers**. With a **60V drain-source voltage (VDS)** and a **continuous drain current of 115mA**, this MOSFET provides efficient switching performance with minimal power loss.

Its **low RDS(on) of 2.5Ω** ensures reduced conduction losses, making it an excellent choice for energy-efficient applications. The **fast switching time of 7ns** supports high-frequency circuit operation, while the **low gate threshold voltage (VGS(th))** allows for direct interfacing with microcontrollers and digital logic circuits.

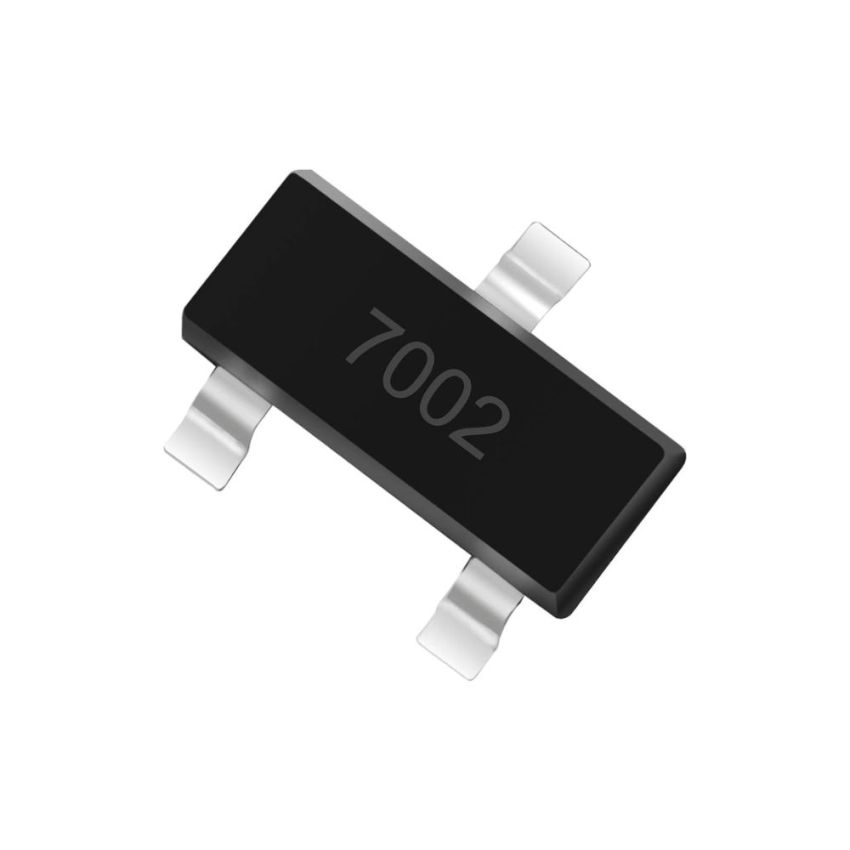

Encased in a **small SOT-23 package**, the 2N7002 is ideal for compact designs where space is a constraint. Its **wide operating temperature range from -55°C to +150°C** ensures stable performance in various environments, from consumer electronics to industrial automation.

• High Voltage and Current Rating: Rated for 60V drain-source voltage (VDS) and 115mA continuous drain current (ID), suitable for low-power switching applications.
• Low On-Resistance: Features a maximum RDS(on) of 2.5Ω, minimizing power dissipation.
• Fast Switching Speed: Optimized for high-speed circuits with a 7ns turn-on time.
• Low Gate Threshold Voltage: Operates with a VGS(th) range of 0.8V to 2.5V, ideal for direct logic-level interfacing.
• Compact Surface-Mount Package: Available in SOT-23 for space-saving PCB integration.
• Wide Operating Temperature Range: Functions reliably from -55°C to +150°C, making it suitable for various industrial and consumer applications.
