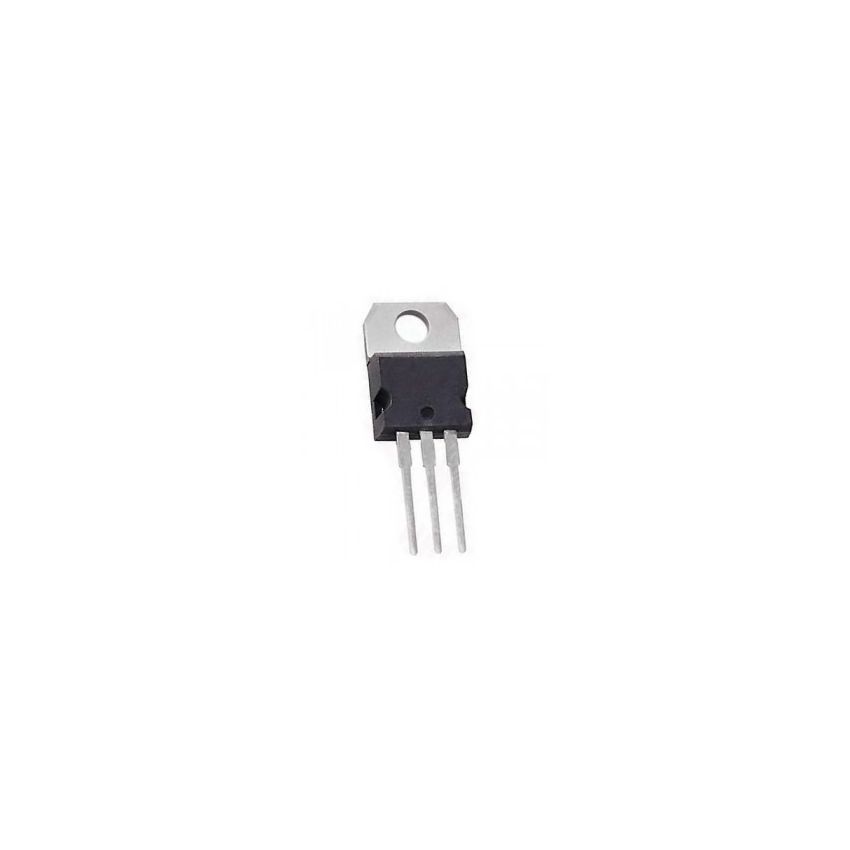

P85NF55 N-Channel Power MOSFET, 60V, 85A, TO-220AB

The P85NF55 is a powerful N-Channel MOSFET designed for high-efficiency switching and high-current applications. With a drain-source breakdown voltage (Vds) of 60V and a continuous drain current capacity of 85A at 25C, this MOSFET excels in motor control, power supplies, and high-current switching circuits. Its low on-resistance of 0.009Ohm ensures minimal energy losses, improving system efficiency while reducing heat generation.

The device is housed in a TO-220AB package, which offers superior heat dissipation, allowing it to handle large power loads. Additionally, the P85NF55 is fully avalanche rated, ensuring reliable operation in extreme conditions. Whether you're designing motor drives, power supplies, or industrial control circuits, this MOSFET provides exceptional performance and durability.

• High Current Capability: Continuous drain current of 85A at 25C, ideal for high-power switching applications.
• Low On-Resistance: RDS(on) as low as 0.009Ohm, ensuring efficient performance with minimal conduction losses.
• High Power Dissipation: Rated for up to 136W of power dissipation at 25C, suitable for power-intensive applications.
• Fast Switching Speed: Designed for high-speed switching with low switching times, improving overall circuit efficiency.
• Avalanche Rated: Fully avalanche rated, ensuring reliability in demanding electrical environments.
• TO-220AB Package: Popular industry-standard package for high power handling with efficient heat dissipation.
