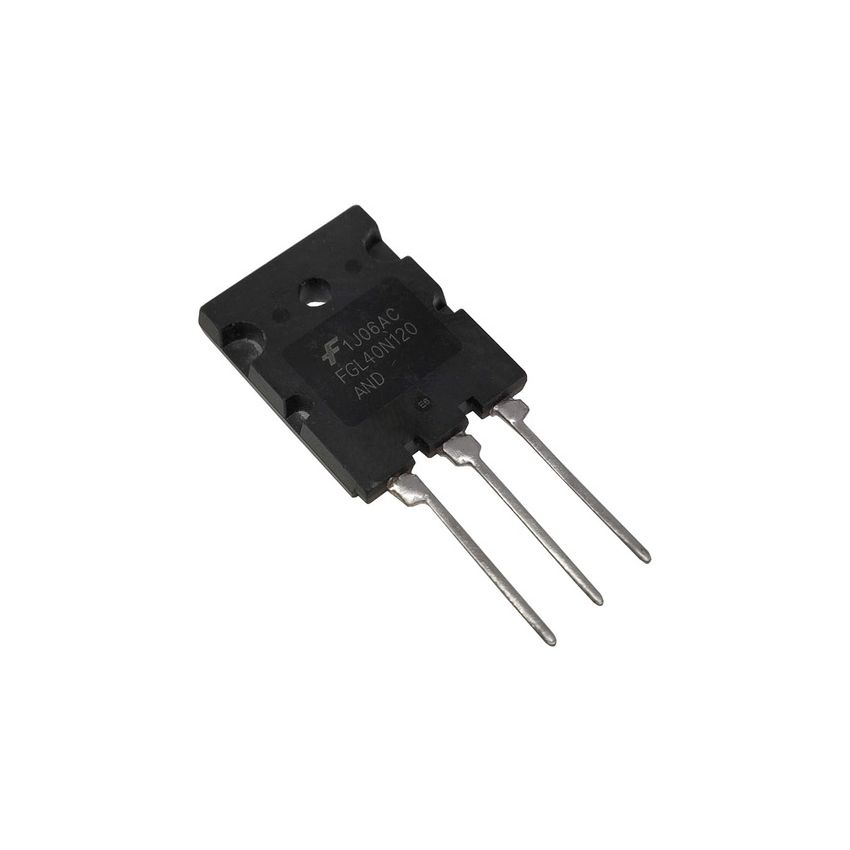

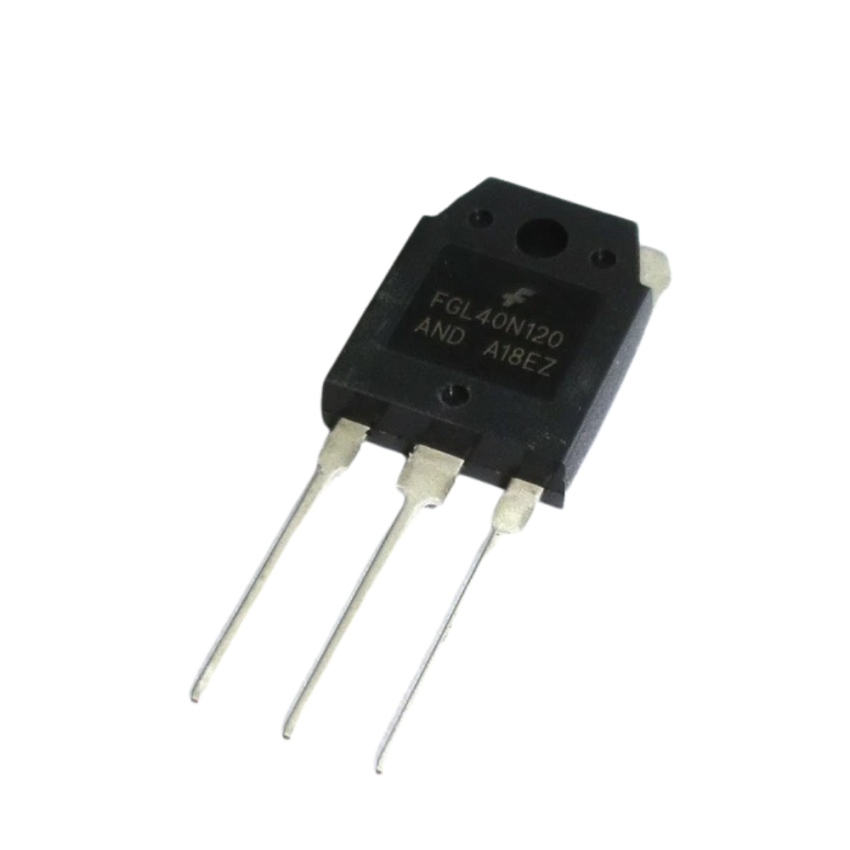

FGL40N120AND 1200V 40A NPT IGBT Transistor – TO-247

The FGL40N120AND is a high-speed NPT IGBT transistor designed for high-power switching applications such as induction heating, motor control, UPS systems, and general-purpose inverters. It features low saturation voltage, high input impedance, and an integrated fast recovery diode.

Key Features:

1. 1200V collector-emitter voltage for high-voltage switching applications.

2.40A continuous collector current suitable for power inverter and motor control circuits.

3.Low saturation voltage of around 2.6V at 40A, helping reduce conduction losses.

4.Integrated fast recovery diode for improved switching performance.

5.Through-hole TO-264 package, suitable for heatsink mounting in high-power designs.

Specifications:

Part Number: FGL40N120AND
Device Type: IGBT Transistor
IGBT Technology: NPT
Configuration: Single
Collector-Emitter Voltage: 1200V
Collector Current: 40A
Maximum Collector Current: 64A
Pulsed Collector Current: 160A
Collector-Emitter Saturation Voltage: 2.6V typical @ 40A
Gate-Emitter Voltage: ±25V
Power Dissipation: 500W in DigiKey listing; some supplier listings may show different values depending on rating conditions.
Integrated Diode: Yes, fast recovery anti-parallel diode
Mounting Type: Through Hole / THT
Packaging: Tube
Operating Junction Temperature: -55°C to +150°C
Typical Applications: Induction heating, AC/DC motor control, UPS systems, general-purpose inverters
