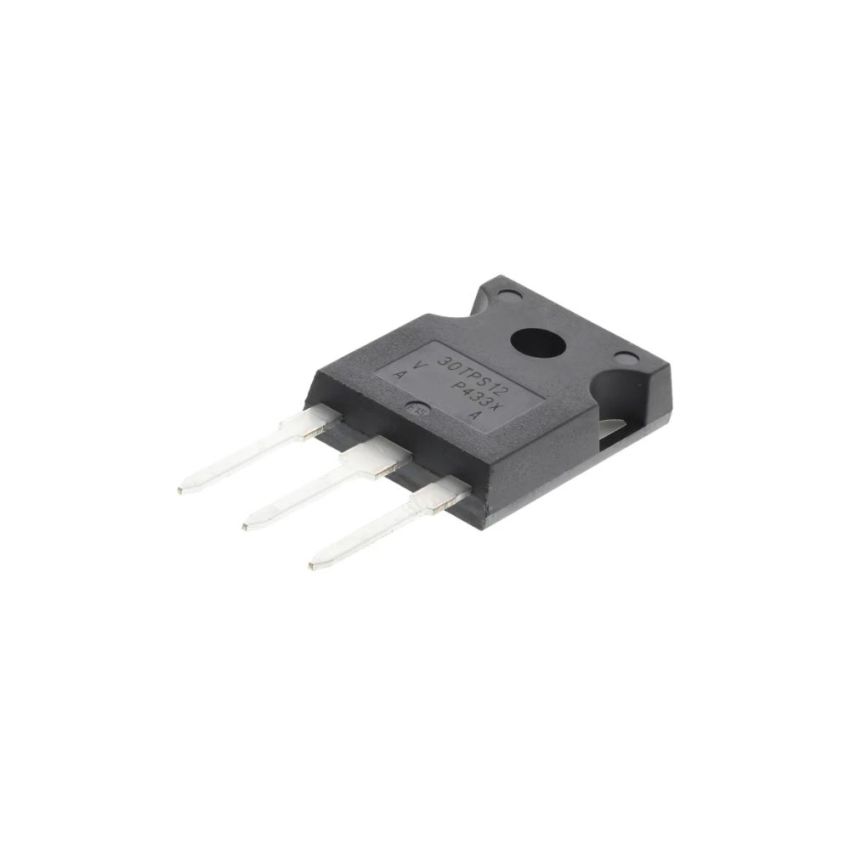

30TPS12,Phase Control SCR, TO-247AC

The 30TPS12 is a silicon-controlled rectifier (SCR) designed for medium power switching and phase control applications. Utilizing glass passivation technology, it offers reliable operation up to a junction temperature of 125°C. The device is capable of handling an average on-state current of 20A and an RMS on-state current of 30A, with a high surge capability of up to 300A. With low gate trigger voltage and current requirements, the 30TPS12 is easily triggered, making it suitable for various control applications. Its high voltage rating of 1200V makes it ideal for use in input rectification (soft start) and AC switches in motor control, UPS, welding, and battery charging applications. The device is housed in a standard TO-247AC package, simplifying mounting and integration into existing designs.

• High Voltage Rating – Rated for a repetitive off-state voltage (V_DRM) of 1200V, suitable for high-voltage applications.
• Moderate Current Handling – Capable of handling an average on-state current (I_T(AV)) of 20A and an RMS on-state current (I_T(RMS)) of 30A, ideal for medium power switching.
• High Surge Capability – Withstands non-repetitive surge peak on-state currents (I_TSM) up to 300A, ensuring robustness under transient conditions.
• Low Gate Trigger Requirements – Features a gate trigger voltage (V_GT) of 2V and a gate trigger current (I_GT) of 45mA, facilitating easy triggering.
• Glass Passivated Technology – Ensures reliable operation up to a junction temperature of 125°C, enhancing durability.
• Standard TO-247AC Package – Facilitates easy mounting and integration into various designs.
