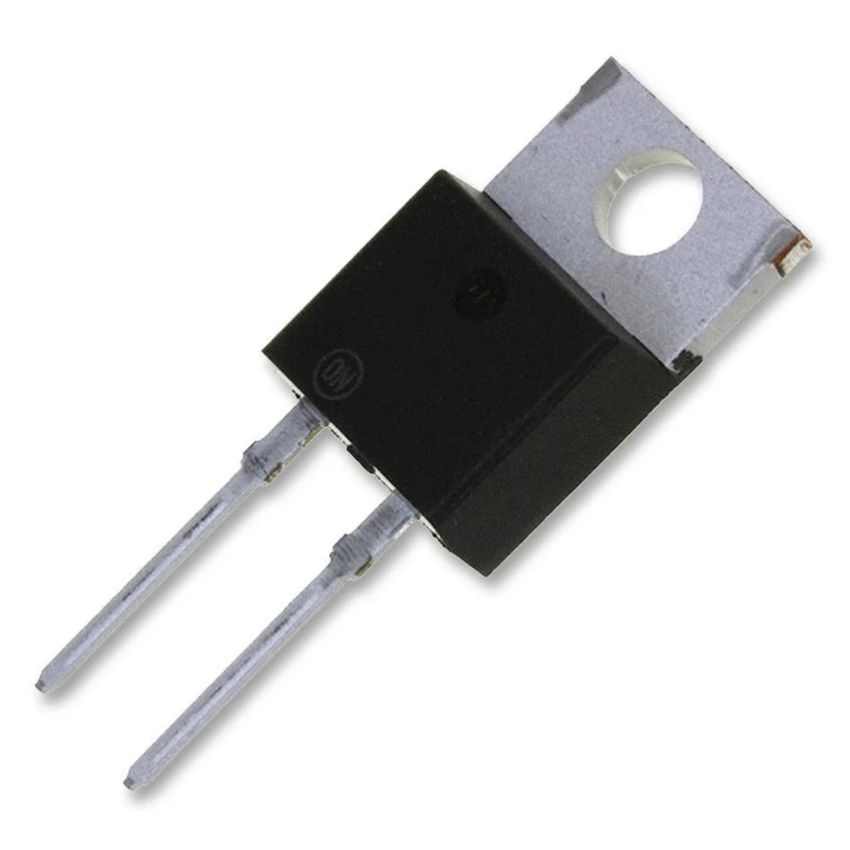

RHRP1560, Ultrafast Soft Recovery Diode, TO-220-2

The RHRP1560 is a hyperfast recovery rectifier diode engineered for use in switch-mode power supplies, PFC circuits, and freewheeling applications in motor drives and inverters. With a soft recovery characteristic and fast switching, it minimizes losses and noise. Its TO-220-2 package provides excellent heat dissipation and mechanical strength for high-power applications.

Key Features:

• Ultrafast Reverse Recovery: Reverse recovery time (t_rr) of 45 ns, ideal for high-speed switching.
• High Voltage Rating: Withstands 600 V peak reverse repetitive voltage (VRRM).
• High Current Capability: Supports 15 A average forward current.
• Low Forward Voltage Drop: V_F = 1.6 V at 15 A.
• Soft Recovery Characteristics: Reduces EMI and switching noise.
• Avalanche Energy Rated: High ruggedness for inductive load handling.

Additional Specifications:

• Type: Ultrafast Recovery Diode
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 600V
• Forward Average Current (If): 15A
• Forward Voltage (Vf): 1.6V At 15A
• Maximum Surge Current: 150A
• Reverse Current (Ir): 10µA At 600V
• Dimensions: 1575x10.2x4.6Mm
