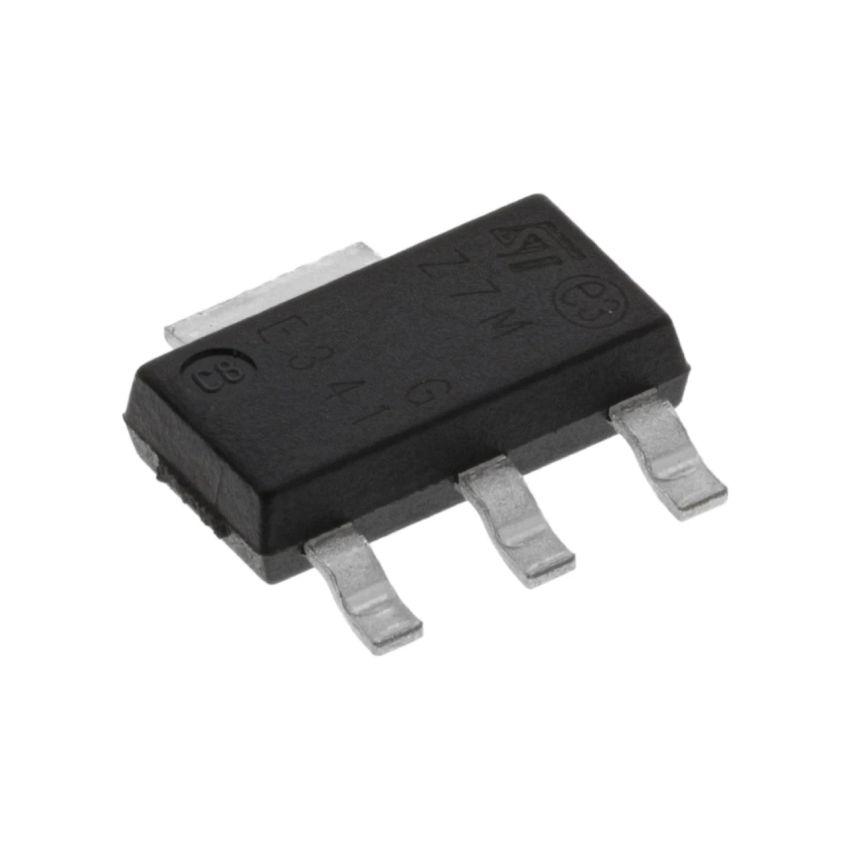

Z0107MN, 600V 1A Sensitive Gate Triac, SOT-223 Package

The Z0107MN is a sensitive gate triac designed for general-purpose AC switching applications. Its low gate trigger current allows for direct interfacing with microcontrollers and other low-power control circuits. The device's four-quadrant triggering capability and compact SOT-223 package make it ideal for use in home appliances, fan speed controllers, and other low-power AC switching applications.​

Key Features:

• High Voltage Capability: Withstands repetitive peak off-state voltages up to 600V, suitable for AC switching applications.​
• Sensitive Gate Triggering: Requires a gate trigger current of only 5mA, allowing direct driving by microcontrollers.​
• Low Holding Current: Features a holding current of 10mA, enabling reliable operation in low-current applications.​
• Compact SOT-223 Package: Offers a small footprint for space-constrained designs.​
• Four-Quadrant Operation: Capable of triggering in all four quadrants, providing design flexibility.​
• Wide Operating Temperature Range: Operates reliably from -40°C to +125°C, suitable for various environments.​

Additional Specifications:

• Mounting Style: Surface Mount
• Gate Trigger Voltage (Vgt): 1.3V
• Gate Trigger Current (Igt): 5Ma
• Non repetitive surge peak on-state current (ITSM): 8.5A
• Operating temprature Range: -40+125°C
• Rated Repetitive Off-State Voltage (VDRM): 600V
