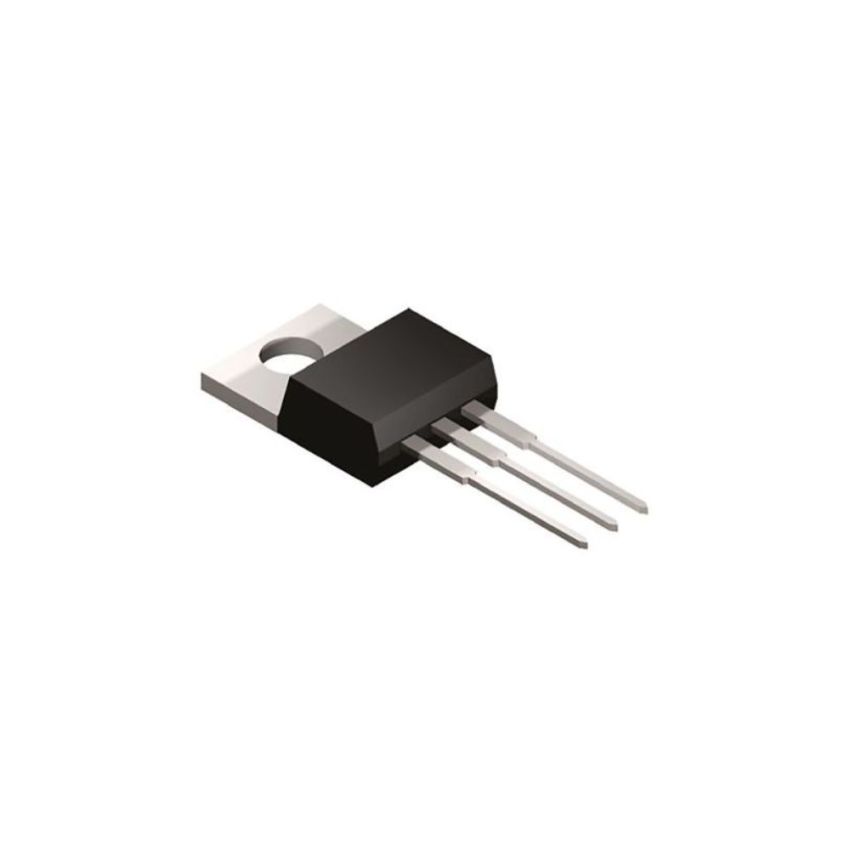

Q8025L6,Alternistor Triac, TO-220

The Q8025L6 is a high-performance Alternistor Triac designed for AC power switching and control applications, particularly those involving highly inductive loads. With a repetitive off-state voltage (VDRM) of 800V and an RMS on-state current rating of 25A, it is suitable for demanding applications such as motor control, lighting dimmers, and industrial power systems.

Featuring a low gate trigger voltage of 1.3V and a gate trigger current of 80mA, the Q8025L6 ensures efficient and reliable triggering. Its high surge current capability of 250A at 60Hz allows it to handle inrush currents effectively, enhancing system robustness.

The TO-220 Isolated package provides 2500V AC isolation, improving safety and simplifying thermal management. The alternistor design offers better turn-off behavior than standard triacs, making it ideal for switching inductive loads.

• High Voltage Rating: Supports a repetitive off-state voltage (VDRM) of 800V, suitable for AC power control applications.
• High Current Capacity: Handles 25A RMS on-state current, ideal for various power switching applications.
• Low Gate Trigger Requirements: Operates with a maximum gate trigger voltage (Vgt) of 1.3V and a gate trigger current (Igt) of 80mA, ensuring efficient triggering.
• High Surge Capability: Withstands 250A non-repetitive surge peak on-state current (ITSM) at 60Hz, ensuring reliability under inrush conditions.
• Isolated Package: Encased in a TO-220 Isolated package, providing 2500V AC isolation, enhancing safety and reducing the need for additional insulation.
• High Commutation Performance: Designed for applications with high inductive loads, offering improved turn-off behavior compared to standard triacs.
