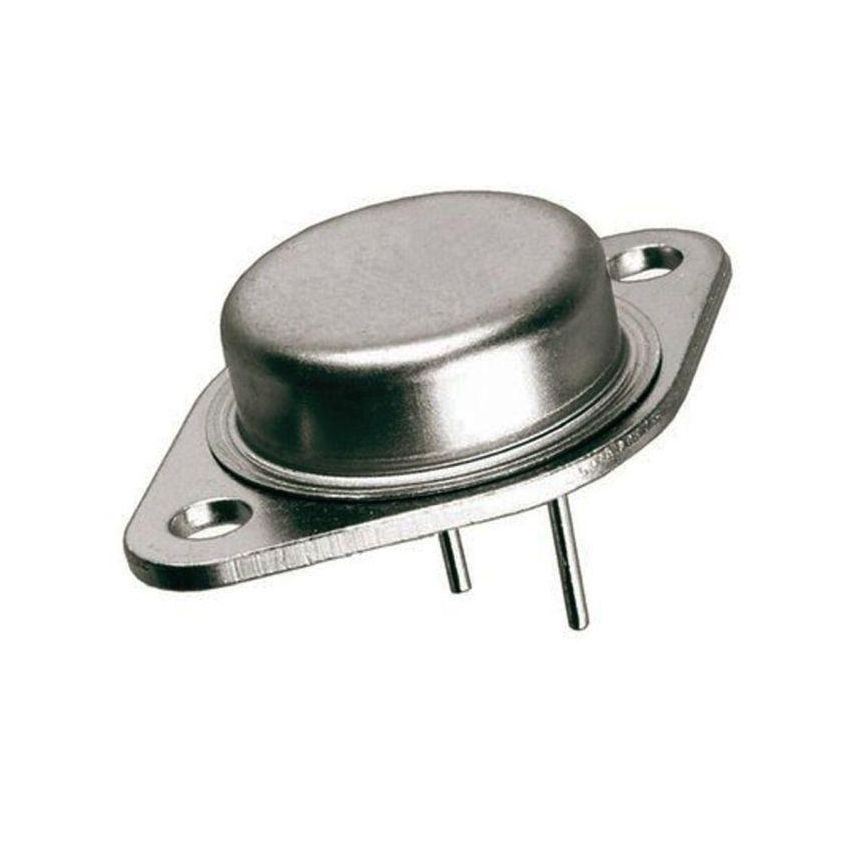

MJ15025, PNP Power Transistor, TO-3

The MJ15025 is a silicon PNP bipolar power transistor designed for high-current, high-voltage applications, especially in power amplifiers, motor control circuits, and industrial systems. Its rugged TO-3 package provides reliable thermal conductivity and long-term durability. This transistor is often paired with the MJ15024 for push-pull amplifier designs.

Key Features:

• High Voltage Capability: Withstands up to 250 V collector-emitter voltage.
• High Current Handling: Rated for 16 A continuous collector current.
• High Power Dissipation: Capable of dissipating up to 250 W with proper heatsinking.
• Complementary Pair: Designed to work alongside the MJ15024 (NPN).
• Excellent Linearity: Suitable for high-power audio and linear amplifier applications.
• Rugged TO-3 Metal Package: Ensures exceptional thermal performance and mechanical strength.

Additional Specifications:

• Mounting Style: Through Hole
• Maximum DC Collector Current (Ic): 16A
• Collector-Emitter Voltage (VCEO) Max: 250V
• Collector-Base Voltage (VCBO): 400V
• Emitter-Base Voltage (VEBO): 5V
• Power Dissipation: 250W
• Operating Temprature: -65+200°C
