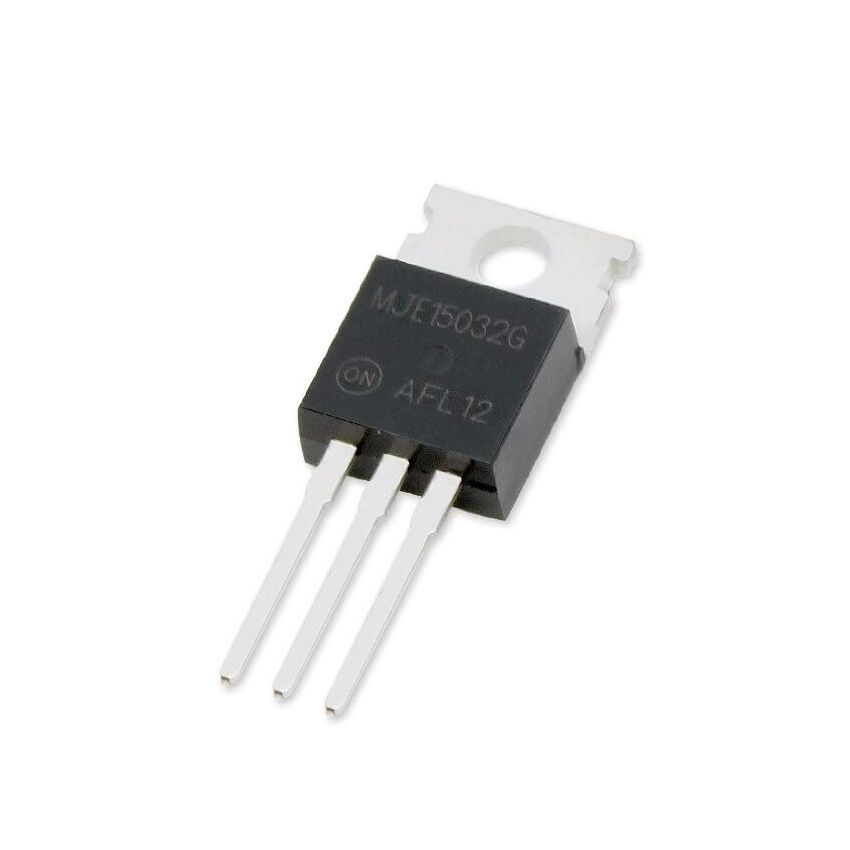

MJE15032G, NPN Power Transistor, TO-220

The MJE15032G is a high-voltage, high-speed NPN power transistor designed for use in high-frequency driver stages of audio amplifiers, inverters, and power supplies. It features a high gain-bandwidth product, excellent linearity, and is housed in the widely used TO-220 package, making it ideal for thermal management and power applications.

Key Features:

• High Voltage Tolerance: Withstands collector-emitter voltage up to 250 V.
• Moderate Current Handling: Continuous collector current up to 8 A.
• High Power Dissipation: Rated for 50 W at 25°C case temperature.
• Fast Switching Speed: f_T = 30 MHz at I_C = 500 mA.
• Complementary Pair: Designed to pair with MJE15033 (PNP).
• TO-220AB Package: Through-hole mounting with good thermal performance.

Additional Specifications:

• Mounting Style: Through Hole
• Maximum DC Collector Current (Ic): 8A
• Collector-Emitter Voltage (VCEO) Max: 250V
• Collector-Base Voltage (VCBO): 250V
• Emitter-Base Voltage (VEBO): 5V
• Power Dissipation: 50W
• Operating Temprature: -65+150°C
