TPDV1225,High Voltage TRIAC,TOP3,1200V,25A

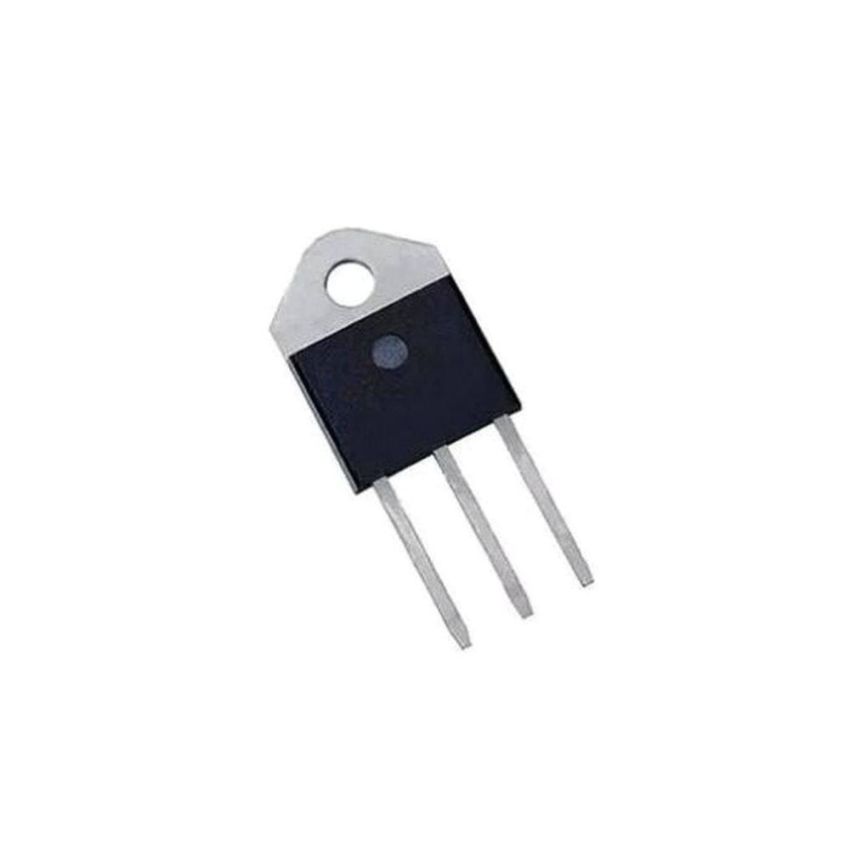

The TPDV1225 is a high-performance TRIAC (Triode for Alternating Current) designed for efficient and reliable AC switching. With a maximum repetitive off-state voltage (VDRM) of 1200V and an on-state RMS current of 25A, this TRIAC is suitable for applications like motor control, lighting dimmers, and industrial power control systems. Its robust design features a TOP3 insulated package, providing effective heat dissipation and a high insulation voltage rating of 2500V rms.

The TPDV1225 features efficient gate triggering with a gate trigger voltage (Vgt) of 1.5V and a gate trigger current (Igt) of 150mA, ensuring stable and reliable switching performance. Its high surge capability allows it to handle non-repetitive peak currents up to 390A, making it capable of withstanding sudden changes in load without compromising performance. Designed for a wide operating temperature range from -40°C to +125°C, the TPDV1225 is built for durability and consistent operation in demanding industrial environments.

• High Voltage TRIAC: Capable of handling a maximum repetitive off-state voltage (VDRM) of 1200V, suitable for AC control applications.
• Efficient Gate Triggering: Features a gate trigger voltage (Vgt) of 1.5V and a gate trigger current (Igt) of 150mA, providing reliable and efficient switching.
• Durable TOP3 Insulated Package: Ensures secure mounting, effective heat dissipation, and high insulation (up to 2500V rms).
• Robust Surge Capability: Can handle non-repetitive surge peak on-state currents (ITSM) up to 390A, ideal for demanding applications.
• Wide Operating Temperature Range: Operates efficiently from -40°C to +125°C, suitable for various industrial environments.
• Reliable Performance: Built for consistent operation in power control applications, including motors, heaters, and AC phase control.
