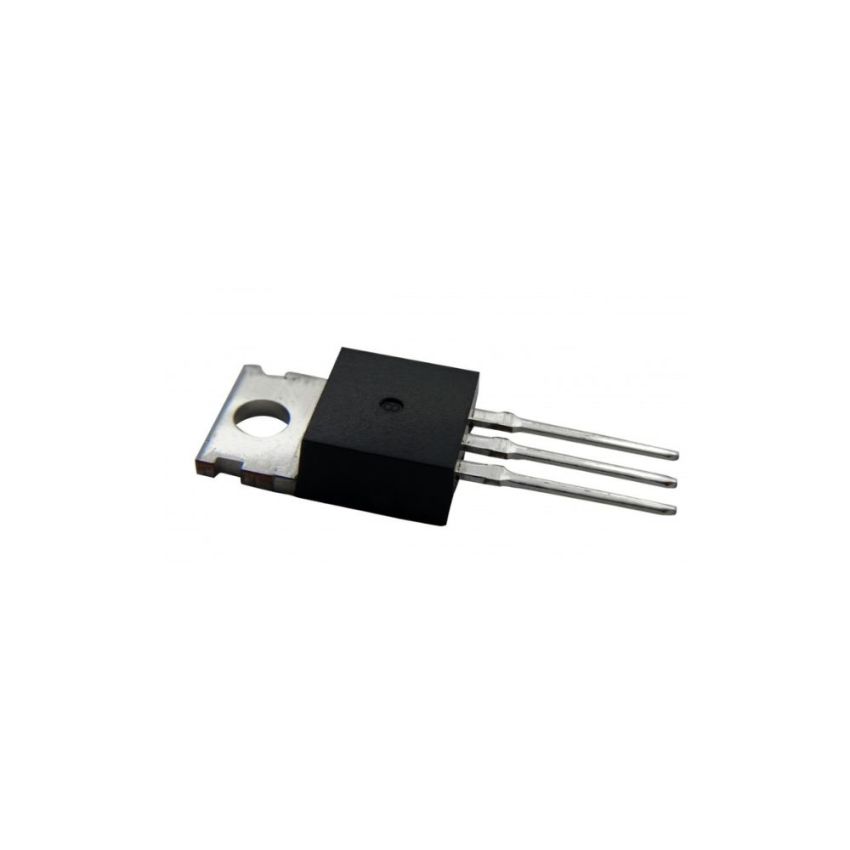

TIC216 Series, Sensitive Gate TRIACs, TO-220

The TIC216 series comprises silicon bidirectional triode thyristors (TRIACs) designed for general-purpose AC switching and phase control applications. With a sensitive gate triggering requirement of a maximum of 5 mA, these TRIACs can be easily controlled by low-power gate drive circuits, making them ideal for interfacing with microcontrollers and other logic devices. The series supports an RMS on-state current of up to 6 A and can withstand non-repetitive surge peak on-state currents up to 60 A, ensuring reliable performance under demanding conditions. Available in off-state voltage ratings ranging from 400 V to 800 V, the TIC216 series offers flexibility for various applications. The devices are housed in a standard TO-220 package, simplifying mounting and integration into existing designs.

• Sensitive Gate Triggering – Requires a maximum gate trigger current (I_GT) of 5 mA, allowing for efficient low-power control.
• Moderate Current Handling – Capable of handling an RMS on-state current (I_T(RMS)) of up to 6 A, suitable for various AC switching applications.
• High Surge Capability – Withstands non-repetitive surge peak on-state currents (I_TSM) up to 60 A, ensuring robustness under transient conditions.
• Wide Off-State Voltage Range – Available in voltage ratings from 400 V to 800 V, providing flexibility for different applications.
• Glass Passivated Wafer – Enhances reliability and longevity by protecting the semiconductor junction.
• Standard TO-220 Package – Facilitates easy mounting and integration into various designs.
