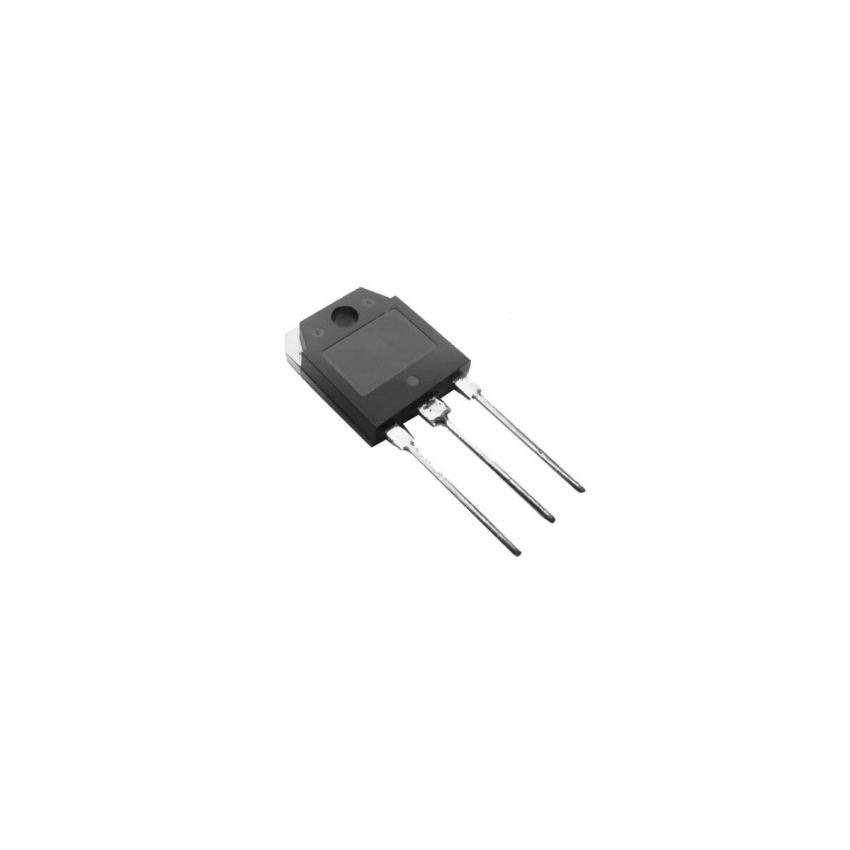

2SD1439 ,NPN Silicon Power Transistor - 1500V, 3A, TO-3P
AEDÂ 14.00
Only 16 left
Guarantee safe & secure checkout
The 2SD1439 is a high-voltage, silicon NPN power transistor designed for horizontal deflection output stages in CRT displays and other high-speed switching applications. This device features a high breakdown voltage of 1500V, a collector current capability of 3A, and a peak collector current of 6A, making it suitable for demanding applications. Its advanced triple-diffused mesa structure ensures high reliability and excellent thermal stability
Encased in a TO-3P package, this transistor offers efficient heat dissipation and robust performance. With a wide area of safety operation and low collector-emitter saturation voltage, the 2SD1439 is optimized for use in high-speed switching circuits.Key Features :
- High Voltage Handling: Collector-emitter voltage up to 1500V and collector-base voltage up to 1500V.
- High Collector Current: Continuous collector current of 3A with a peak capability of 6A.
- Low Saturation Voltage: Collector-emitter saturation voltage as low as 5V at 2A.
- High Power Dissipation: Maximum power dissipation of 50W at 25°C.
- TO-3P Package: Compact design with efficient thermal dissipation for high-performance operation.
- Wide Operating Temperature Range: Junction temperature up to 150°C for reliable operation in extreme environments.
| Mounting Style | Through Hole |
|---|---|
| Max Voltage | N/A |
