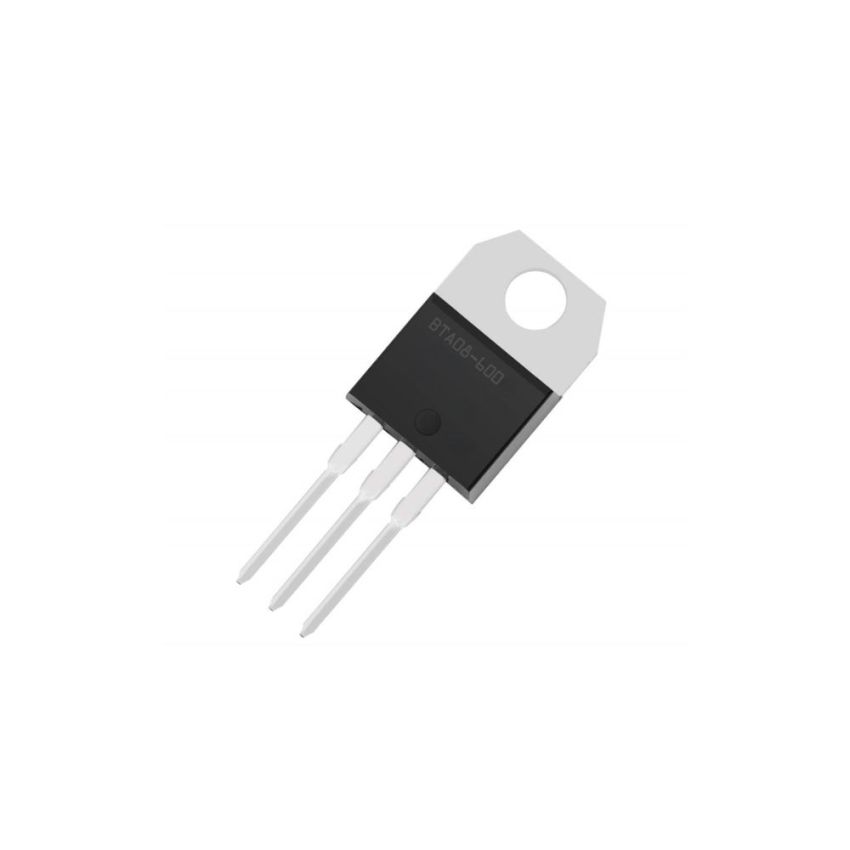

BTA08-600B,TRIAC,8A,600V,TO-220-3

The BTA08-600B TRIAC is a high-performance switch designed for AC switching and control applications. With a voltage rating of 600V and an RMS on-state current rating of 8A, this triac provides a reliable solution for motor speed controllers, light dimmers, and other phase control systems. The snubberless design of the BTA08 series makes it particularly well-suited for inductive loads, such as induction motors and transformers, enhancing its commutation performance without the need for an external snubber circuit.

This triac comes in a TO-220AB package with a fully insulated tab rated at 2500VRMS, ensuring safe operation in high-voltage environments. The BTA08-600B also meets UL standards and operates within a temperature range of -40°C to +125°C, making it ideal for a variety of industrial and consumer applications.

• High Voltage Capability: Rated at 600V for robust operation in AC power switching.
• Current Handling: Supports up to 8A RMS on-state current for heavy-duty applications.
• Snubberless Design: Ideal for use with inductive loads, enhancing commutation performance.
• Insulated Package: TO-220AB package with voltage-insulated tab (2500VRMS), compliant with UL standards.
• Wide Operating Temperature Range: Operates between -40°C to +125°C, ensuring reliable performance in varied environments.
• Versatile Applications: Suitable for phase control, static relays, motor control, heating regulation, and more.
