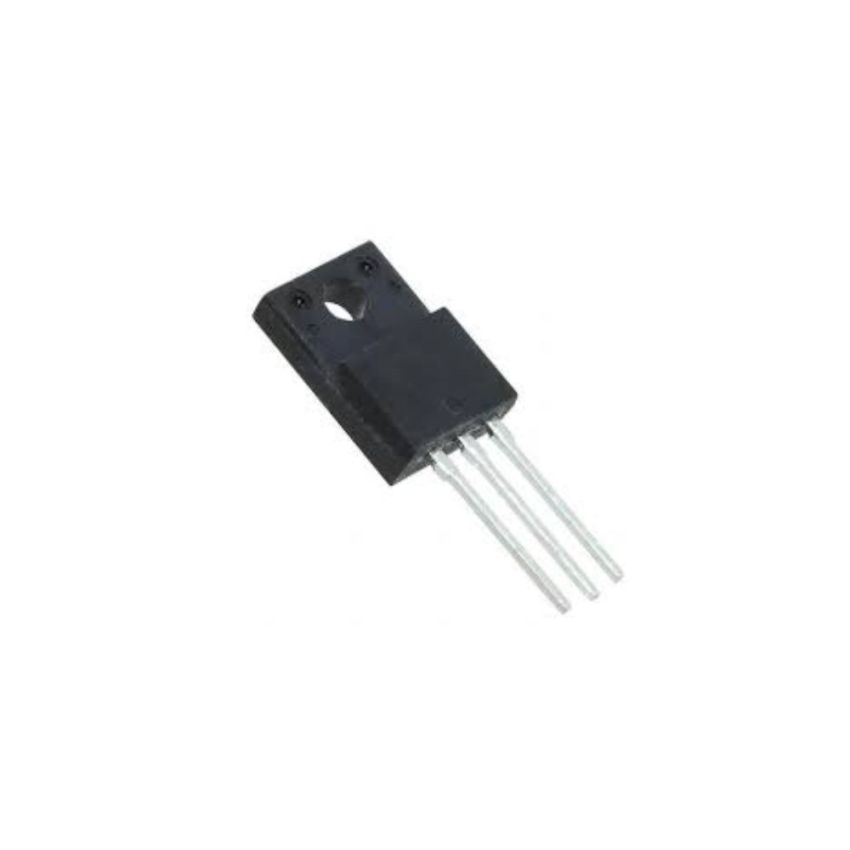

04N60C3,N-Channel MOSFET,TO-220F

The 04N60C3 is a high-performance N-Channel MOSFET designed for efficient switching and power conversion in industrial and consumer applications. With a drain-source voltage rating of 650V and a continuous drain current of 4A, this MOSFET is ideal for use in high-voltage power supplies, motor controls, and inverters.

Its low gate charge of 48nC and improved dynamic dV/dt ruggedness ensure energy-efficient and robust performance. The compact TO-220F package provides excellent thermal management, allowing reliable operation under heavy loads.

The 04N60C3 operates effectively across a wide temperature range from -55°C to +150°C, ensuring consistent performance in industrial and high-temperature environments. Fully compliant with RoHS directives, it is a dependable choice for engineers designing energy-efficient systems.

• High Voltage and Current Rating: Supports a maximum drain-source voltage (Vds) of 650V and a continuous drain current (Id) of 4A, ideal for power electronics applications.
• Low Gate Charge: Features a low gate charge of 48nC, ensuring simple drive requirements and energy-efficient operation.
• TO-220F Package: Compact and thermally optimized for efficient heat dissipation in high-power designs.
• Rugged Design: Offers improved gate, avalanche, and dynamic dV/dt ruggedness for reliable performance under demanding conditions.
• Wide Operating Temperature Range: Functions reliably between -55°C and +150°C, making it suitable for industrial and high-temperature environments.
• Fully Characterized Performance: Capacitance and avalanche voltage are fully characterized for precise circuit design.
