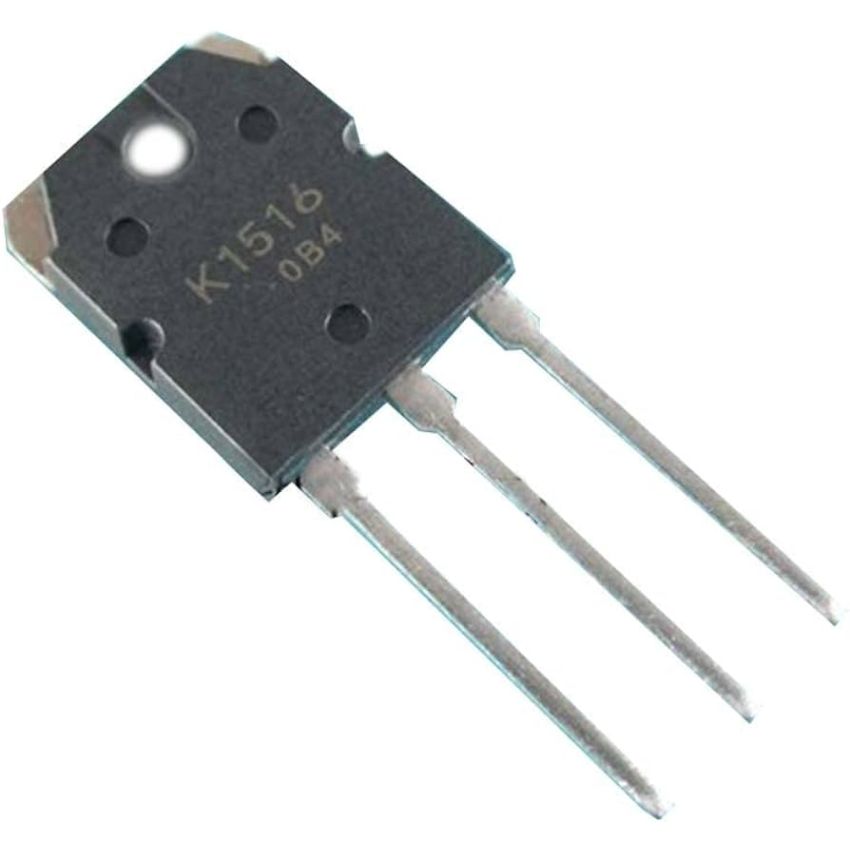

2SK1516,N-Channel MOSFET,500V VDS,10A ID,TO-3P
AED 10.00
In stock
Guarantee safe & secure checkout
The 2SK1516 is a high-performance N-channel silicon MOSFET designed for high-speed power switching applications. With a Drain-Source Voltage (VDS) of 500V and a Continuous Drain Current (ID) of 10A, this MOSFET is optimized for motor control, switching regulators, and DC-DC converters. Its low on-resistance and high-speed switching capability make it ideal for power electronics requiring efficiency and reliability.
Encased in a durable TO-3P package, the 2SK1516 offers excellent thermal performance and compact integration for high-power circuits. The built-in fast recovery diode enhances its suitability for high-speed and high-frequency applications.Key Features :
- High Voltage Capability: Rated for up to 500V Drain-Source Voltage (VDS).
- High Current Capability: Supports a continuous Drain Current (ID) of up to 10A.
- Low On-Resistance: Offers low power loss with RDS(on) of 0.8Ohm.
- Fast Switching Performance: Features a turn-on delay time of 35ns and turn-off delay time of 95ns.
- Built-in Fast Recovery Diode: Provides a recovery time (trr) of 120ns for enhanced switching performance.
- Robust TO-3P Package: Ensures excellent thermal dissipation and reliability.
| GTIN | 1, |
|---|---|
| Max Voltage | N/A |
