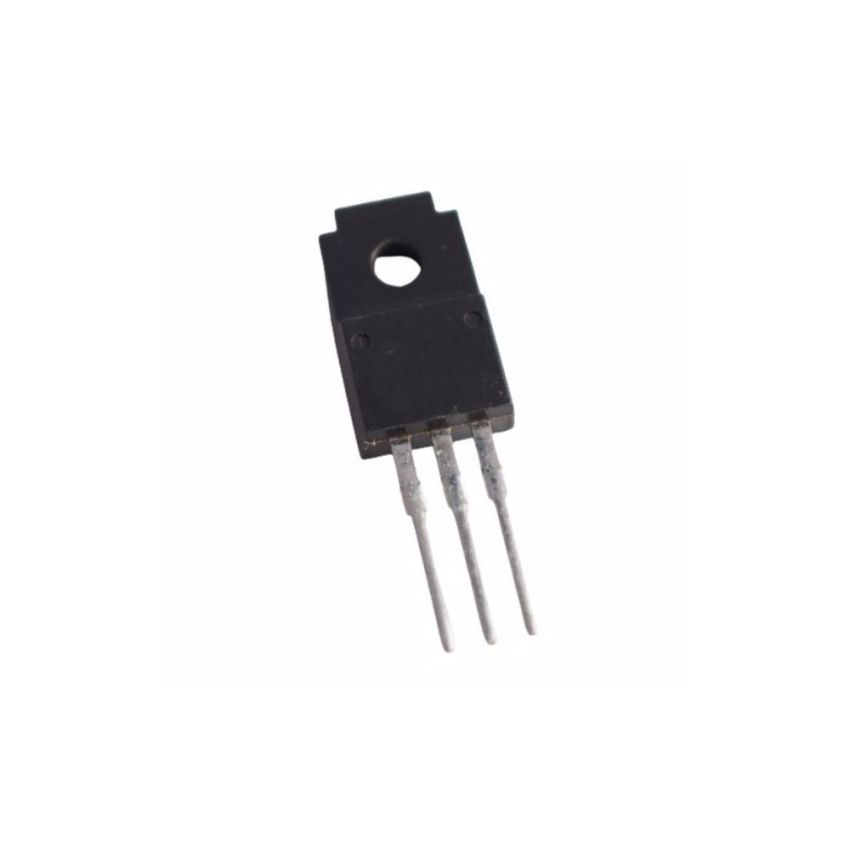

2SD1408, NPN Power Transistor, TO-220 Package

The 2SD1408 is a silicon NPN power transistor housed in a TO-220 package. It is designed for power amplifier applications, particularly in high-fidelity audio frequency amplifier outputs ranging from 20 to 25W. Its high power dissipation capability, low collector saturation voltage, and good linearity make it suitable for various high-power applications.

• High Power Dissipation: Capable of dissipating up to 25W, ensuring efficient thermal management.
• Low Collector Saturation Voltage: V_CE(sat) is 1.5V (Max) at I_C = 3A, ensuring efficient operation with minimal power loss.
• High Collector-Emitter Breakdown Voltage: V_(BR)CEO is 80V (Min), suitable for various high-voltage applications.
• Good Linearity of h_FE: Ensures consistent performance across different operating conditions.
• Complementary Pairing: Designed to complement the 2SB1017 PNP transistor, facilitating push-pull amplifier configurations.
• TO-220 Package: Provides efficient heat dissipation and ease of mounting.
