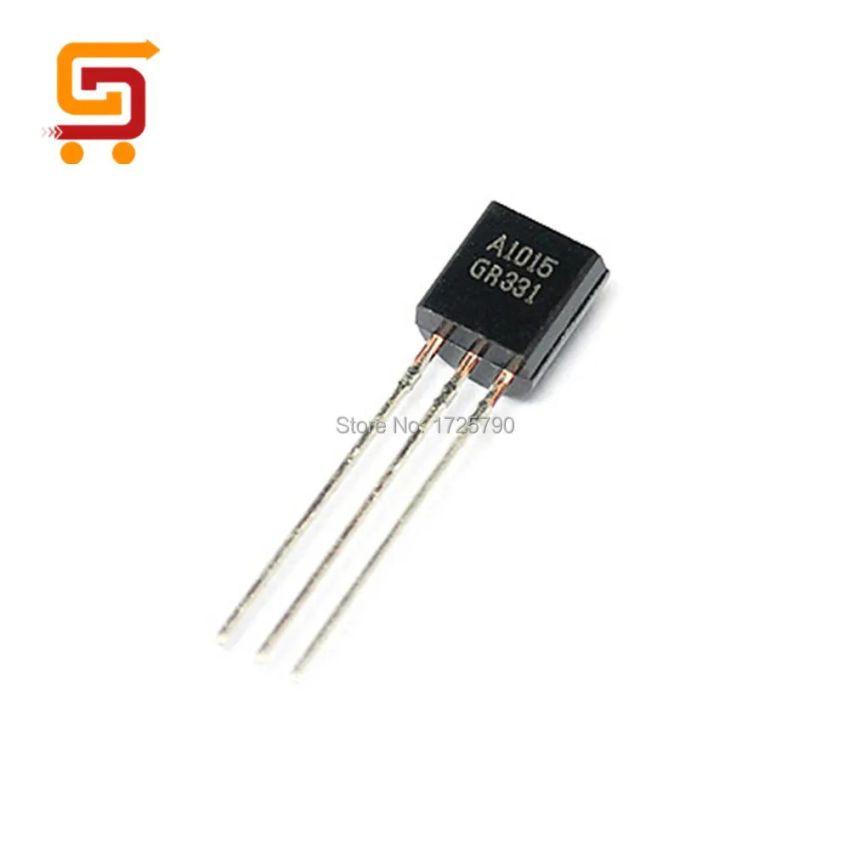

A1015-GR ,PNP Transistor TO-92, 50V, 150mA

The A1015-GR is a PNP plastic-encapsulated transistor designed primarily for power dissipation and general-purpose amplification tasks. It operates with a collector-emitter voltage (Vceo) of -50V and can handle a maximum continuous collector current (Ic) of -150mA, making it suitable for low-power applications. The GR classification refers to the transistor's high current gain (hFE), which ranges between 200 and 400, providing a significant amplification factor in low-level signal circuits.

This transistor is known for its low noise characteristics, making it a popular choice for audio amplification applications, as well as switching applications in power dissipation circuits. The device operates within a power dissipation limit of 400mW and features a TO-92 package, which allows for ease of use in compact designs. Additionally, the A1015-GR offers reliable performance across a junction temperature range of -55C to +125C, making it a versatile component in various temperature conditions.

The A1015-GR is ideal for use in audio systems, amplifiers, and other low-power electronic circuits where low noise and reliable performance are required.

Key Features :

• Power Dissipation: Handles up to 400mW, allowing for moderate power applications.
• Voltage Rating: Capable of withstanding collector-base and collector-emitter voltages up to 50V.
• Current Handling: Supports a continuous collector current of 150mA, making it suitable for low-power circuits.
• High DC Gain: Offers a high DC current gain (hFE) ranging from 70 to 400, ensuring efficient current amplification.
• Package Type: TO-92 package, compact and commonly used in through-hole mounting applications.
• RoHS Compliant: Fully compliant with environmental standards, lead-free and halogen-free.
